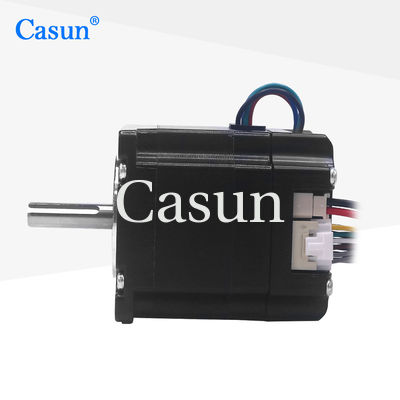

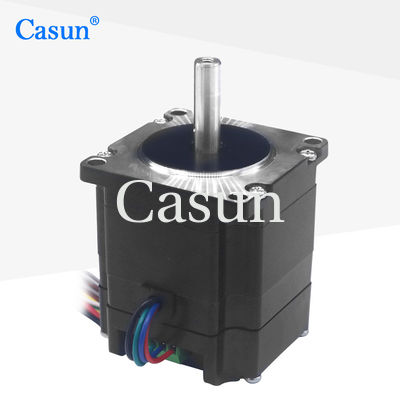

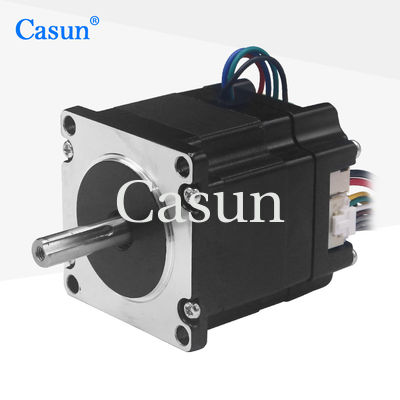

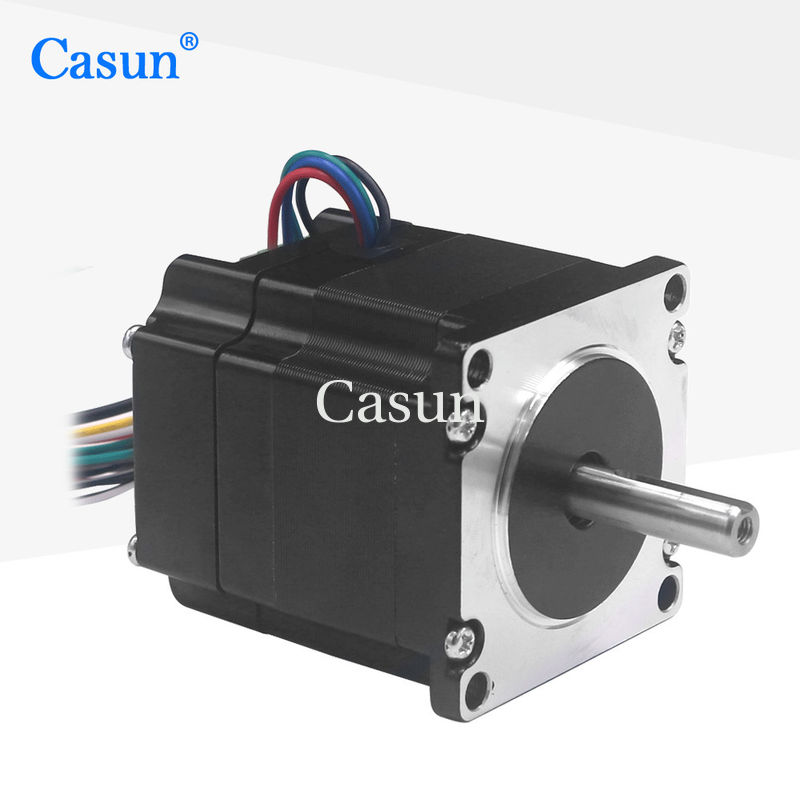

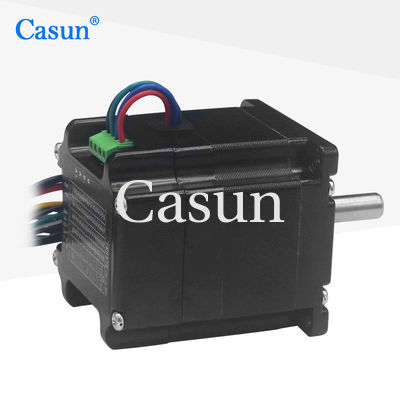

Nema 23 Closed Loop Stepper Motor 900mN.m 12V IRS57E

Nema 23 Closed Loop Stepper Motor 900mN.m 12V IRS57E

Brand Name:	Casun
Model Number:	57SHD4101-29PH-IRS57E
MOQ:	5PC
Price:	$35~$37
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	10000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Holding Torque:

900 MN.m

Voltage:

12V

Current:

1.0 A

Body Length:

45mm

Weight:

0.6 Kg

Phase Resistance:

12 Ohm ±10% （At 20℃）

Shaft Length:

28 Mm

Phase:

Insulation Class:

Class B

Packaging Details:

Carton:38x29x18cm

Highlight:

Nema 23 closed loop stepper motor

12V IRS57E stepper motor

900mN.m integrated stepper motor

Product Description

Casun Motor Nema 23 Stepper Motor IRS57E Closed Loop Stepper Motor 900mN.m 12V CE RoHS

The Casun Nema 23 Closed Loop Stepper Motor (Model: IRS57E) delivers industrial-grade precision and reliability for demanding automation applications. Combining 900mN.m high torque with 12V low-voltage operation, this motor integrates encoder-based closed-loop control to eliminate step loss and ensure consistent performance in CNC, robotics, and high-speed positioning systems.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Nema 23 Closed Loop Stepper Motor 900mN.m 12V IRS57E 0

Motor Specifications

Step Angel	1.8°
Frame Size	45 mm
Number of Phase	2 Phase
Rated Current	1.0 Amp
Holding Torque	900 mN.m
Resistance	12 ohm
Inductance	28 mH
Rotor Inertia	155 g.cm²
Motor weight	0.6 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Nema 23 Closed Loop Stepper Motor 900mN.m 12V IRS57E 1

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 23 Closed Loop Stepper Motor 900mN.m 12V IRS57E 2

Please click the "Get a quote" button below to tell us your requirements.
