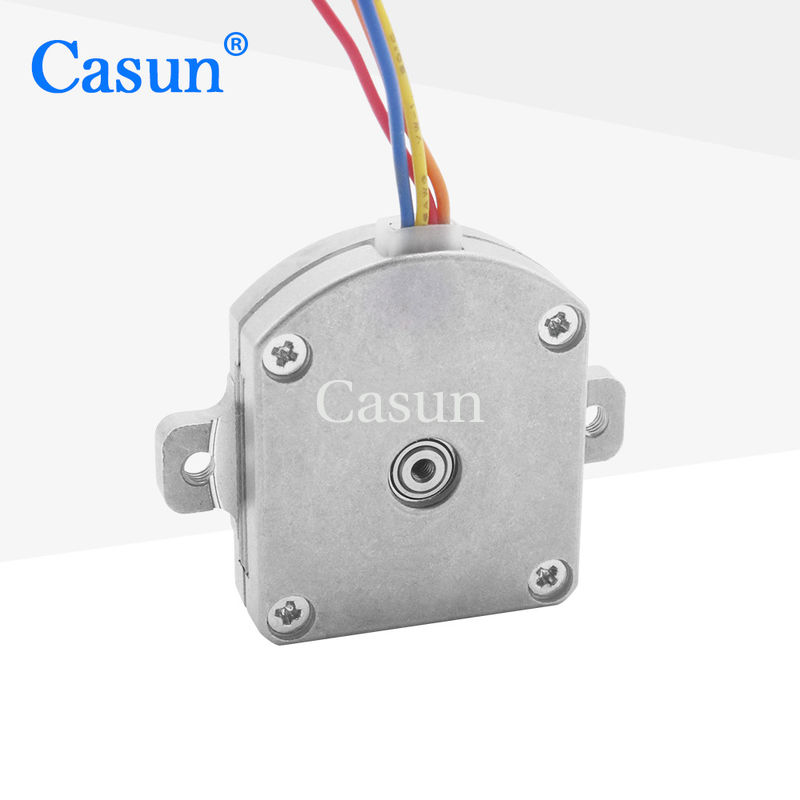

Bipolar Micro Flat Stepper Motor 15MN.M Nema 11 Stepper Motor Flat

Cheap Nema 11 micro flat stepper motor stepper motor with printing machinery feeder

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

• Bipolar or unipolar versions available

• Hybrid stepper construction

• Available in single or double shaft versions

• CE and RoHS approved

• Customizations on request

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Please click the "Get  a quote" button below to tell us your requirements.
