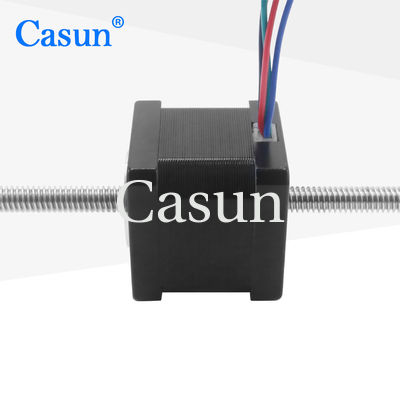

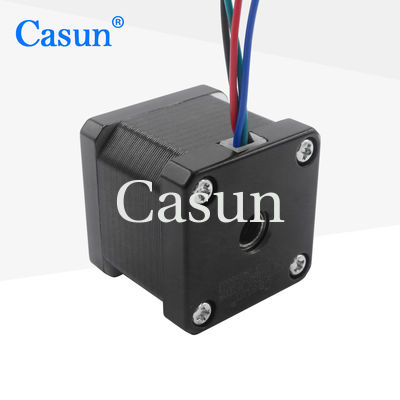

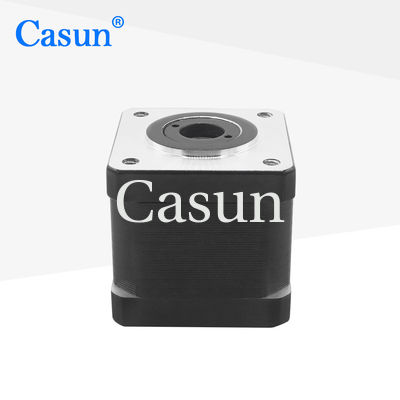

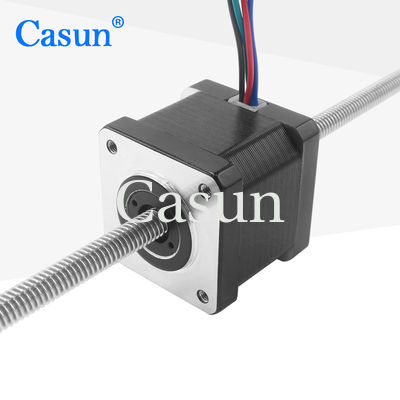

Nema 14 Non Captive Lead Screw Stepper Motor 34mm Tr6.35 35mm Linear Step Motor

Nema 14 Non Captive Lead Screw Stepper Motor 34mm Tr6.35 35mm Linear Step Motor

Non Captive Lead Screw Stepper Motor

Nema 14 Non Captive Lead Screw

Lead Screw Stepper Motor 34mm

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

P35SHD4150-257T4

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$9.68-$16
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

In a range of sizes, the 35mm Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.



Features:

  • Bipolar or unipolar versions available

  • Professional drivetrain solution specialist

  • Available in single or double shaft versions

  • Offer custom services

  • Professional research and development manufacturing

Dimensions

Nema 14 Non Captive Lead Screw Stepper Motor 34mm Tr6.35 35mm Linear Step Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



1.0A

Holding Torque



190 mN.m

Resistance



3.5 hm

Inductance



3.6 mH

Rotor Inertia



20 g-cm²

Motor weight



0.18 kg

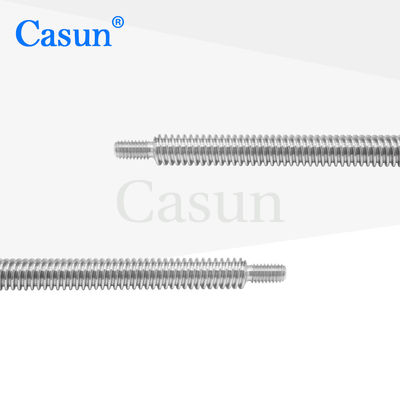

Lead Screw



Tr6.35X2.4384

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
35SHD0307-20 80mN.m 1.8° 20mm Round Shaft
20mm
0.4A
35SHD0001-20 100mN.m 1.8° 26mm Round Shaft
20mm
0.4A
35SHD0102-20B 150mN.m 1.8° 34mm D Shaft-20mm 0.75A
35SHD0801-20B 280mN.m 1.8° 40mm D Shaft-20mm 0.5A



Body Length Diameter of Screw Pitch Length of Screw
20 mm

26 mm

34 mm

40 mm

50 mm


5 2 20-1000 mm
4
5.56 9.7536
6.35 6.35
6.5 3
8 2
M5 1.6


Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 14 Non Captive Lead Screw Stepper Motor 34mm Tr6.35 35mm Linear Step Motor 1 Nema 14 Non Captive Lead Screw Stepper Motor 34mm Tr6.35 35mm Linear Step Motor 2 Nema 14 Non Captive Lead Screw Stepper Motor 34mm Tr6.35 35mm Linear Step Motor 3 Nema 14 Non Captive Lead Screw Stepper Motor 34mm Tr6.35 35mm Linear Step Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
