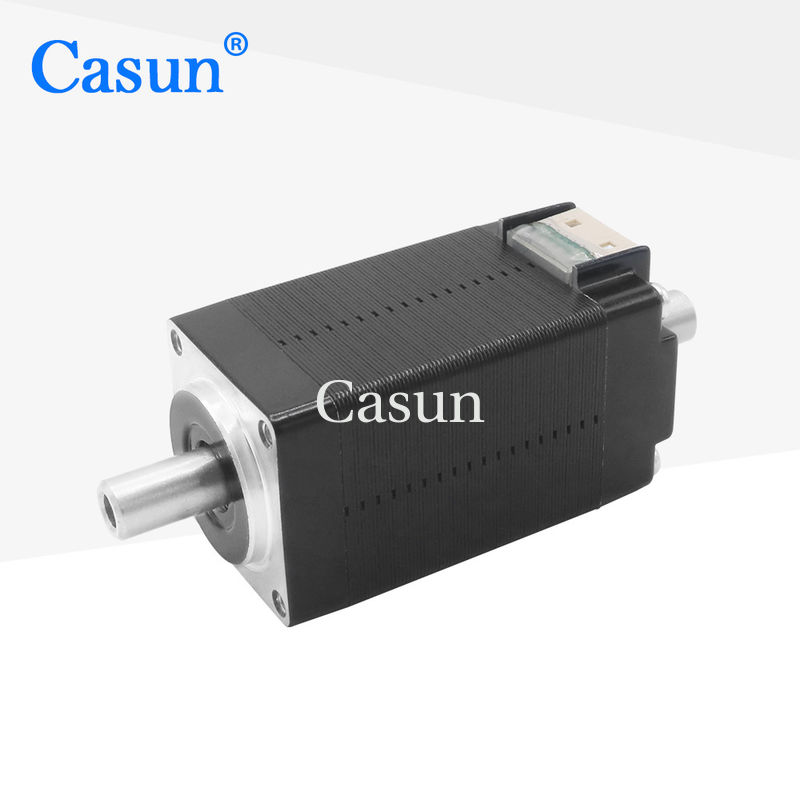

Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
  • Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
  • Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
  • Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
  • Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
  • Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm
  • Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm

Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm

Place of Origin CHINA
Brand Name Casun
Certification CE,ROSH,ISO
Model Number 20SHD0250-10SK
Product Details
High Light:

38.5mm DC Dual Shaft Stepper Motor

,

28x28 Dual Shaft Stepper Motor

,

Nema 11 Hollow Shaft Stepper Motor

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$6.86-$10.5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

The 20 double axis hollow stepper motor has a dual axis structure.

Generally, one axis is used for rotation, while the other axis can be used for transmitting signals, pumping gas or liquid, etc.

It is very suitable for situations that require multiple operations at the same time.



Features:

  • Versions in unipolar or bipolar are offered.

  • Hybrid stepper building

  • Available in variations with a single or double shaft

  • Within 48 hours, one of our engineers will contact you with the best option.

  • Upon request, modifications

Dimensions

Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



0.6 A

Holding Torque



32 mN.m

Resistance



9.0 Om

Inductance



3.2mH

Rotor Inertia



3.8 g-cm²

Motor weight



0.1 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Casun Model General Model Angle Motor Length Rated Current Holding Torque
B20SHD4353-10 8HS11-0204S 1.8° 28mm 0.2A 0.016 N.m
  8HS12-0506S 1.8° 28mm 0.5A 0.018N.m
20SHD0501-10 8HS13-0604S 1.8° 34.3mm 0.6A 0.018N.m
  8HS15-0304S 1.8° 38mm 0.3A 0.03N.m
20SHD4255-10X 8HS15-0604S 1.8° 38mm 0.6A 0.04N.m
20SHD4101-20   1.8° 42mm 0.8A 0.03N.m



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 1 Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 2 Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 3 Nema 11 Dual Hollow Shaft Stepping Motor for Medical Machine 28x28x38.5mm 4
