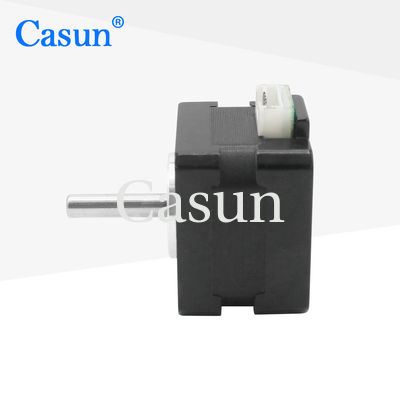

Step motor nema14 35x35x40mm 350mN.m micro stepper motor with high torque

Step motor nema14 35x35x40mm 350mN.m micro stepper motor with high torque

Brand Name:	Casun
Model Number:	35SHD0003-23H
MOQ:	1PC
Price:	$4-$5.2
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

110mN.m

Current:

0.4A

Motor Length:

26mm

Shaft:

Round Shaft 23mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

0.4A NEMA 14 Stepper Motor

35x35x26mm NEMA 14 Stepper Motor

3D Printer Parts NEMA 14

Product Description

Step Motor NEMA14 35x35x40mm 350mN.m Micro Stepper Motor with High Torque

35x35x40mm 0.4A Casun Stepper Motor NEMA 14 Mini Stepper Motor for medical beauty equipment. This 2-phase 350mN.m 0.4A 35x35x40mm stepping motor is ideal for 3D printers and printer parts.

Motor Specifications

Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	350 mN.m
Resistance	22 ohm
Inductance	8 mH
Rotor Inertia	12 g·cm²
Motor Weight	0.15 kg
Number of Leads	0
Connection	Bipolar

Appearance

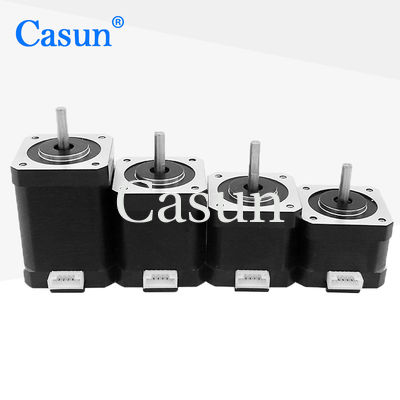

Motor Appearance

Dimensions

Motor Dimensions Diagram

The NEMA 14 Casun stepper motor is a specific type of stepper motor that belongs to the NEMA (National Electrical Manufacturers Association) standard size 14 category. Stepper motors are widely used in various applications that require precise position control, such as 3D printers, CNC machines, robotics, and automation systems.

Stepper motors like the NEMA 14 Casun are commonly controlled using specialized motor drivers or controllers. These drivers provide the necessary electrical signals to energize the motor windings in the correct sequence, allowing precise control over the motor's position and speed.

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Connector
