products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Integrated Stepper Motor
Created with Pixso.

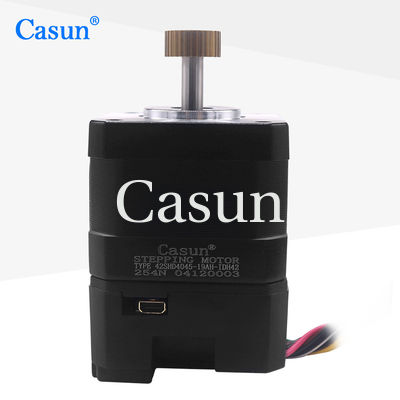

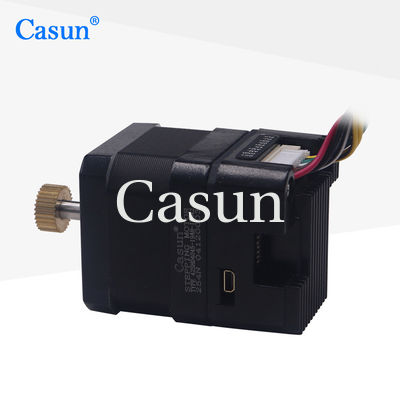

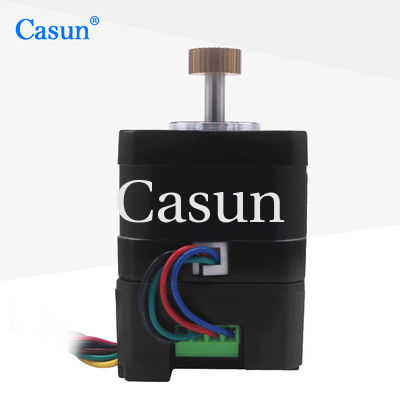

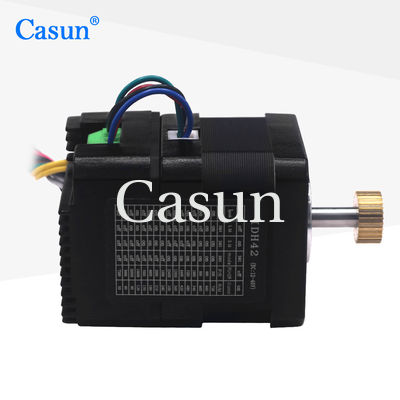

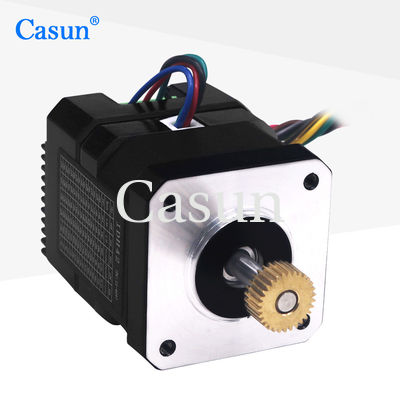

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m

name

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m

Brand Name: Casun
Model Number: 42SHD4045-19AH-IDH42
MOQ: 5PC
Price: $34~$37
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
300 MN.m
Voltage:
3.2 V
Current:
1.68 A
Body Length:
57 Mm
Weight:
0.2 Kg
Phase Resistance:
1.9 Ohm ±10% （At 20℃）
Shaft Length:
19 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

Nema 17 hybrid stepper motor

,

IDH42 integrated stepper motor

,

300mN.m stepper motor with warranty

Product Description

Casun Nema 17 Hybrid Stepper Motor IDH42 High-quality integrated stepper motor 300 mN.m

The Casun NEMA 1 Hybrid Stepper Motor (IDH42) delivers high torque (300 mN.m) and reliable performance for precision motion control. Designed for smooth operation and durability, this integrated stepper motor is ideal for CNC machines, automation, robotics, and 3D printing.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

                    Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m 0



Motor Specifications



Step Angel



 1.8°

Frame Size



 57 mm

Number of Phase



 2 Phase

Rated Current



 1.68 Amp

Holding Torque



 300 mN.m

Resistance



 1.9 ohm

Inductance



 2.6 mH

Rotor Inertia



 38 g.cm²

Motor weight



 0.2 kg

Connection



 Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -



Submodels



                    Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m 1



Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m 2 Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m 3 Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m 4 Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m 5





Please click the "Get a quote" button below to tell us your requirements.

Tags:

RS485 Integrated stepper motor

All-in-One Integrated stepper motor

Integrated stepper motor nema 17
