Integrated Stepper Motor
Created with Pixso.

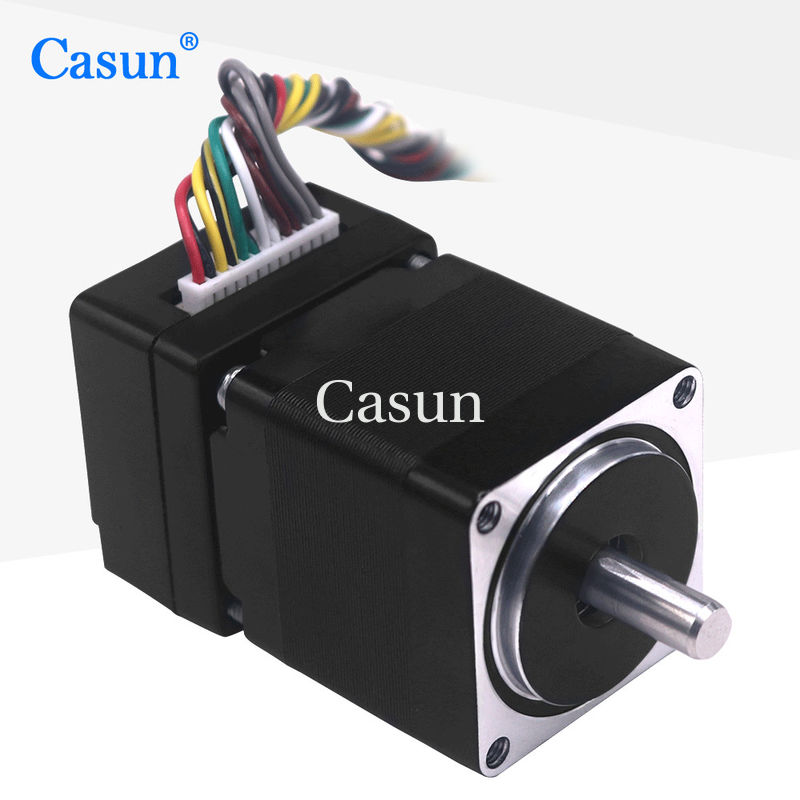

NEMA 11 Stepper Motor IDH28 50mN.m 2.5V High Precision

name

NEMA 11 Stepper Motor IDH28 50mN.m 2.5V High Precision

Brand Name: Casun
Model Number: 28SHD4150-13B-IDH28
MOQ: 5PC
Price: $42~$45
Payment Terms: D/A,T/T,L/C,D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
50 MN.m
Voltage:
2.5 V
Current:
1 A
Body Length:
35 Mm
Weight:
0.14 Kg
Phase Resistance:
2.2 Ohm ±10% （At 20℃）
Shaft Length:
12.5 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

Nema11 integrated stepper motor

,

High precision stepper motor 50mN.m

,

Casun IDH28 stepper motor

Product Description
Good Quality Integrated Stepper Motor IDH28 Nema11 Casun Motor 50 mN.m High Precision
Product Specifications
Attribute Value
Holding Torque 50 mN.m
Voltage 2.5 V
Current 1 A
Body Length 35 mm
Weight 0.14 kg
Phase Resistance 2.2 ohm ±10% (At 20℃)
Shaft Length 12.5 mm
Phase 2
Insulation Class Class B
Product Description

The Casun IDH28 is a high-precision NEMA 11 stepper motor with 50 mN.m holding torque, designed for smooth and reliable performance. Its compact, integrated design ensures easy installation, making it ideal for CNC machines, 3D printers, robotics, and automation systems.

Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request
Dimensions
NEMA 11 Stepper Motor IDH28 50mN.m 2.5V High Precision 0
Motor Specifications
Step Angle 1.8°
Frame Size 35 mm
Number of Phase 2 Phase
Rated Current 1 Amp
Holding Torque 50 mN.m
Resistance 2.5 ohm
Inductance 2.2 mH
Rotor Inertia 8 g.cm²
Motor weight 0.14 kg
Connection Bipolar
Operating Specifications
Motor
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Encoder
Voltage 5 V
Output A + A - B + B - Z + Z -
Submodels
NEMA 11 Stepper Motor IDH28 50mN.m 2.5V High Precision 1
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to:

  • Special shafts
  • Winding parameters
  • Installation dimensions
  • Lead wires with special requirements
  • Connectors
Available Options:
NEMA 11 Stepper Motor IDH28 50mN.m 2.5V High Precision 2 NEMA 11 Stepper Motor IDH28 50mN.m 2.5V High Precision 3 NEMA 11 Stepper Motor IDH28 50mN.m 2.5V High Precision 4 NEMA 11 Stepper Motor IDH28 50mN.m 2.5V High Precision 5
