products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pancake Stepper Motor
Created with Pixso.

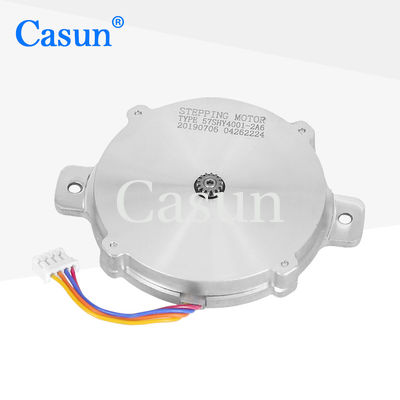

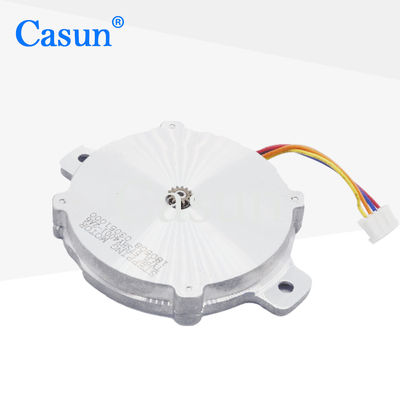

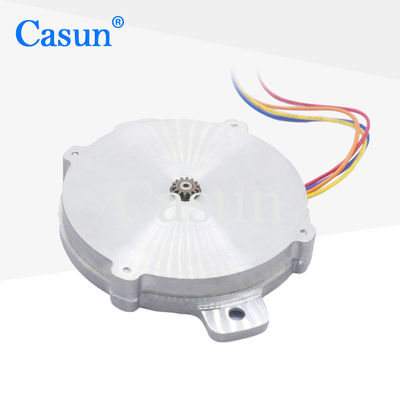

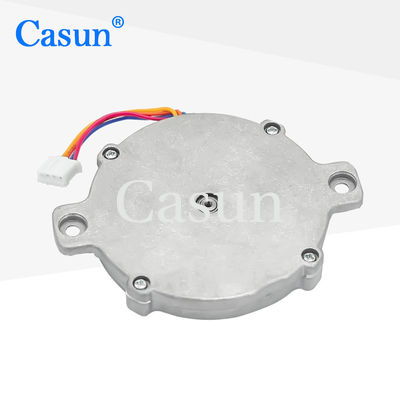

Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS

Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS

Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS

Brand Name: Casun
Model Number: 57SHY4001-2A6
MOQ: 1PC
Price: $9.68-13.46
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angle:
1.8°
Body:
9.6mm
Current:
0.8A
Holding Torque:
60mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 23 Flat Stepper Motor

,

Casun Nema 23 Flat Stepper

,

Casun Flat Stepper Motor High Torque

Product Description

The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS 0







Motor Specifications



Step Angel



1.8 °

Fram Size



57 mm

Number of Phase



2 Phase

Rated Current



0.8A

Holding Torque



60 mN.m

Resistance



3.5 om

Inductance



1.8 mH

Rotor Inertia



2 g-cm²

Motor weight



0.03 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
57SHY4001 9.6mm 0.8A 60mN.m
57SHY4301 13mm 1.2A 125mN.m




Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS 1 Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS 2 Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS 3 Casun Nema 23 Flat Stepper Motor High Torque Two Phase CE And RoHS 4





Please click the "Get  a quote" button below to tell us your requirements.
