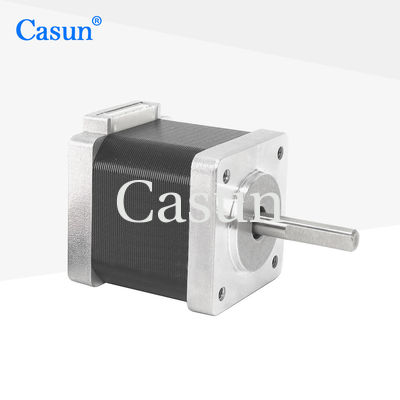

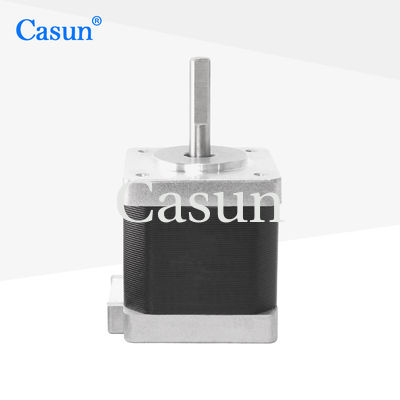

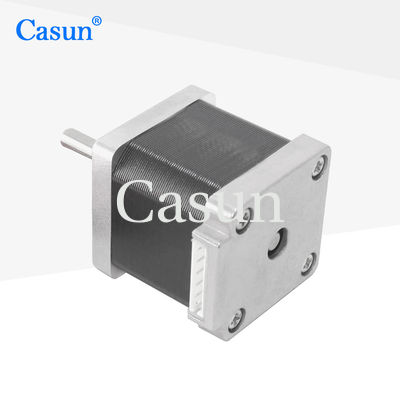

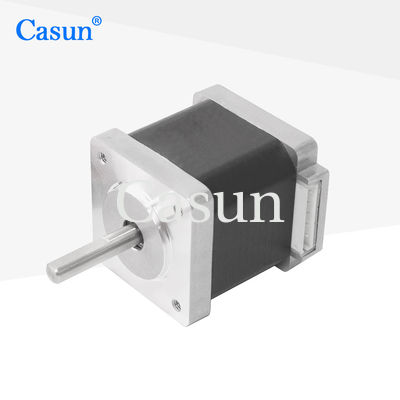

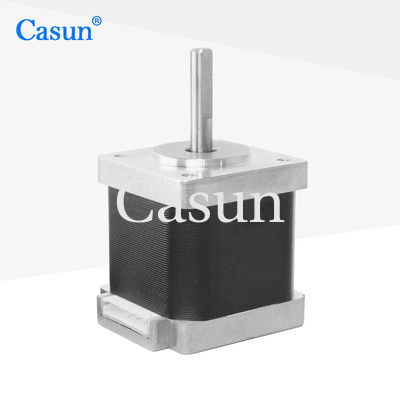

CE Casun 40mm NEMA 14 Stepper Motor CCTV 12V DC Stepper Motor

name

CE Casun 40mm NEMA 14 Stepper Motor CCTV 12V DC Stepper Motor

Brand Name: Casun
Model Number: 35SHD0801-30B
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
220mN.m
Current:
0.5A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 30mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

CE Casun NEMA 14 Stepper Motor

,

40mm NEMA 14 Stepper Motor

,

CCTV 12V DC Stepper Motor

Product Description

The operation of the 35mm stepper motor is relatively stable, without the potential vibration and resonance problems of traditional DC motors.

Water pumps, electronic door locks, image scanners, and fine positioning devices are examples of small automation systems.



Features:

  • Bipolar or unipolar versions available

  • Over 800 clients have been handled over its twelve years of operation in China

  • Every stepper motor model has use in a variety of situations

  • CE and RoHS approved

  • Customizations on request





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.5 A

Holding Torque

220 mN.m

Resistance

18 ohm

Inductance

25.5 mH

Rotor Inertia

18 g-cm²

Motor weight

0.21 kg

Number of leads

4

Connection

Bipolar





Appearance



CE Casun 40mm NEMA 14 Stepper Motor CCTV 12V DC Stepper Motor 0

Dimensions

CE Casun 40mm NEMA 14 Stepper Motor CCTV 12V DC Stepper Motor 1





Torque Curves



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
