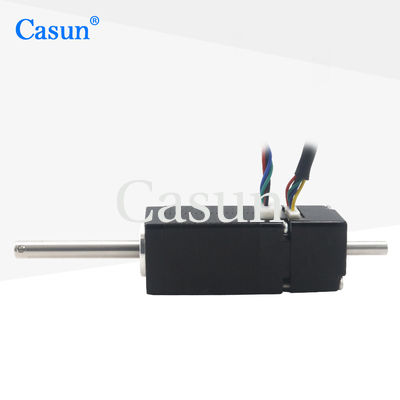

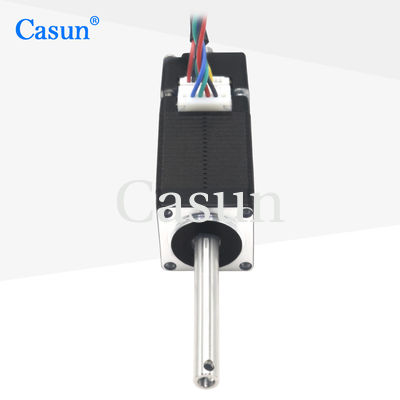

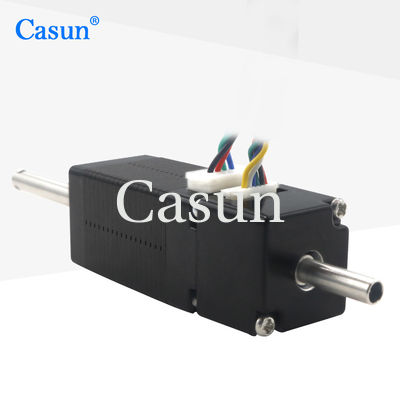

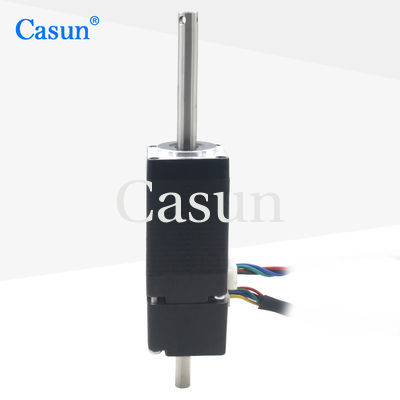

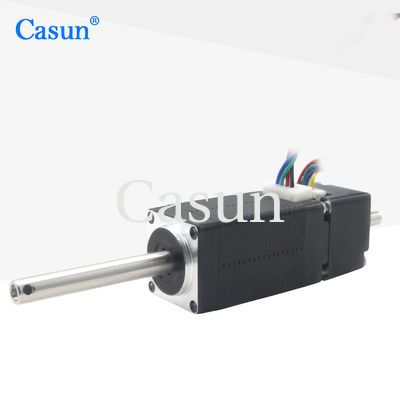

Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment

Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment

Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment

Brand Name: Casun
Model Number: 20SHD4255-36SKQ
MOQ: 5PC
Price: $26~$28.15
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 10000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Holding Torque:
40 MN.m
Voltage:
7.5V
Current:
0.6A
Body Length:
38 Mm
Weight:
0.08 Kg
Phase Resistance:
12.5 Ohm ±10% （At 20℃）
Shaft Length:
36 Mm
Phase:
2
Insulation Class:
Class B
Packaging Details:
Carton:38x29x18cm
Highlight:

Encoder Stepping Motor

,

0.6Amp Stepper Motor

,

7.5V NEMA 8 Stepper Motor

Product Description
Casun Nema 8 Stepper Motor with Encoder
The Casun Nema 8 Stepper Motor is a compact, high-precision motor designed for medical equipment and sensitive automation applications. With a 40 mN.m holding torque and 7.5V operating voltage, it delivers reliable performance while consuming just 0.6A per phase. The integrated encoder ensures accurate positioning and feedback, making it ideal for surgical devices, lab automation, and small-scale robotics.
Key Features
• Bipolar or unipolar versions available
• Hybrid stepper construction
• Available in single or double shaft versions
• CE and RoHS approved
• Customizations on request
Dimensions
Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment 0
Motor Specifications
Specification Value
Step Angle 1.8°
Frame Size 38 mm
Number of Phase 2 Phase
Rated Current 0.6 Amp
Holding Torque 40 mN.m
Resistance 12.5 ohm
Inductance 5.5 mH
Rotor Inertia 3.8 g.cm²
Motor Weight 0.08 kg
Connection Bipolar
Operating Specifications
Motor Operating Conditions
• Step Angle: 1.8°
• Maximum Temperature: 80°C maximum
• Ambient Temperature: -20°C to 50°C
• Storage Temperature: -20°C to 100°C
• Humidity Range: 85% or less, non-condensing
• Magnet Wire Insulation: Class B 130°C
• Insulation Resistance: 100M Ohm at 500 VDC
• Dielectric Strength: 500 VDC for 1 min
Encoder Specifications
• Voltage: 5V
• Output: A + A - B + B - Z + Z -
Submodels
Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment 1
Custom Motor Solutions
If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.
Available Options
Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment 2
Encoder
Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment 3
Brake
Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment 4
Gearbox
Casun Nema 8 7.5V 40 mN.m 0.6Amp Stepper Motor with Encoder Stepping Motor for Medical Equipment 5
Shaft
