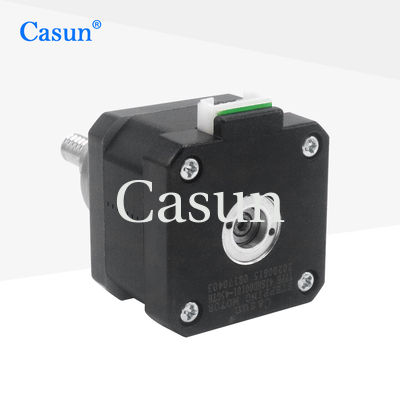

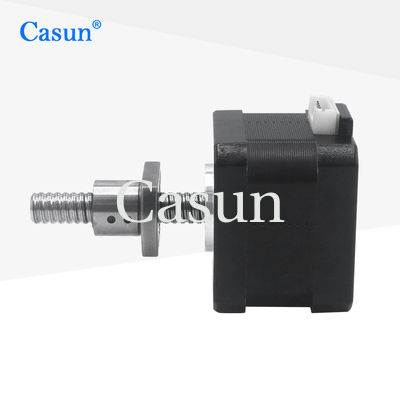

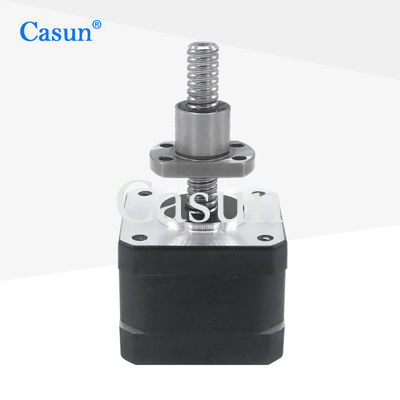

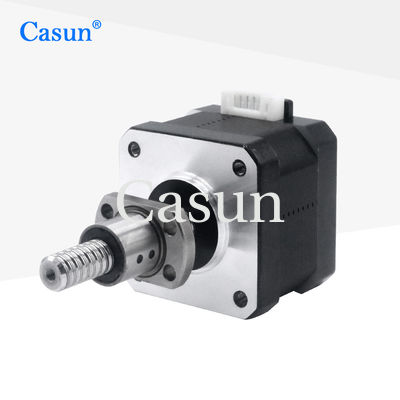

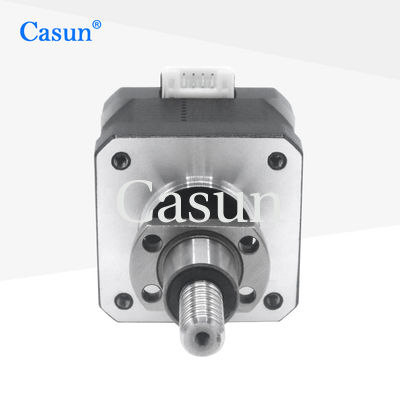

42x42mm NEMA 17 Ball Screw Stepper Motor With SFK0802 Linear Actuator Motor

42x42mm NEMA 17 Ball Screw Stepper Motor With SFK0802 Linear Actuator Motor

  • High Light

    42x42mm NEMA 17 Ball Screw

    ,

    NEMA 17 Ball Screw Stepper Motor

    ,

    SFK0802 Linear Actuator motor

  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROSH,ISO
  • Model Number
    42SHD00101-45GTH
  • Minimum Order Quantity
    1PC
  • Price
    $9.68-$14
  • Packaging Details
    Carton:38x29xc14m
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

42x42mm NEMA 17 Ball Screw Stepper Motor With SFK0802 Linear Actuator Motor

Nema 17 42x42mm Ball screw Custom linear motor With SFK0802 Linear Actuator Steppering Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

42x42mm NEMA 17 Ball Screw Stepper Motor With SFK0802 Linear Actuator Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.68A

Holding Torque



320 mN.m

Resistance



1.5 hm

Inductance



2.5 mH

Rotor Inertia



38 g-cm²

Motor weight



0.23 kg

Lead Screw



Ball Screw SFK0802

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A







Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

42x42mm NEMA 17 Ball Screw Stepper Motor With SFK0802 Linear Actuator Motor 1 42x42mm NEMA 17 Ball Screw Stepper Motor With SFK0802 Linear Actuator Motor 2 42x42mm NEMA 17 Ball Screw Stepper Motor With SFK0802 Linear Actuator Motor 3 42x42mm NEMA 17 Ball Screw Stepper Motor With SFK0802 Linear Actuator Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
