Brake Stepper Motor
Created with Pixso.

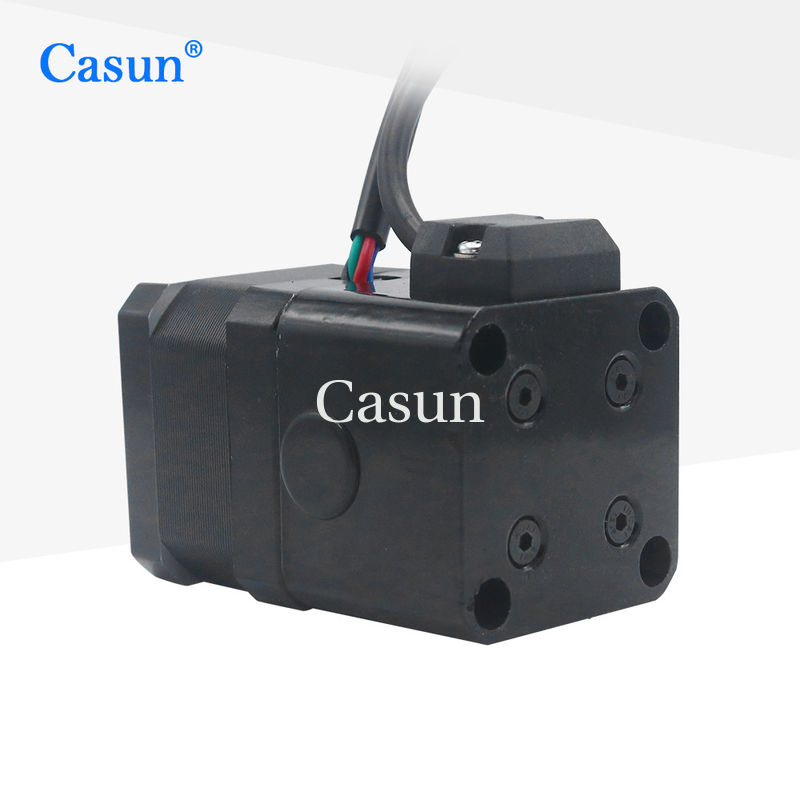

Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake

name

Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake

Brand Name: Casun
Model Number: 42SHD4034-24BH-HP42
MOQ: 1PC
Price: $37-$41
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Casun Brake Stepper Motor

,

Casun Nema 17 Stepper Motor 12V

,

42X42X34mm Brake Stepper Motor

Product Description

In a range of sizes, the 42mm Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.



Features:

  • Versions in unipolar or bipolar are offered.

  • Hybrid stepper building

  • Available in variations with a single or double shaft

  • Within 48 hours, one of our engineers will contact you with the best option.

  • Hybrid stepper building



Motor Specifications



Step Angel



 1.8 °

Fram Size



 42 mm

Number of Phase



 2 Phase

Rated Current



 1.2 A

Holding Torque



 300mN.m

Resistance



 5.0 om

Inductance



 6.2 mH

Rotor Inertia



 38 g-cm²

Motor weight



 0.42 kg

Number of leads



 4

Connection



Bipolar



Dimensions

Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake 0







Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min











Torque Curves









Submodels



Casun Model General Model Step Angle Motor Length Rated Current Holding Torque
0.9° Degree
42SHB4002-17 17HM08-1204S 0.9° 20mm 1.2 A 0.11 N.m
42SHB0303-22 _ 0.9° 34mm 0.5A 0.24 N.m
42SHB0509-24B 17HM15-0904S 0.9° 40mm 0.9 A 0.35 N.m
42SHB4608-24B1 17HM19-2004S 0.9° 48mm 2.0 A 0.46 N.m
1.8° Degree
42SHD4950-20B 17HS08-1004S 1.8° 20mm 1.0 A 0.13 N.m
45SHD0513-20B _ 1.8° 26mm 1.2A 0.26N.m
42SHD0008-24 17HS-0316S 1.8° 34mm 0.3 A 0.16 N.m
42SHD4003-20B 17HS13-0404S1 1.8° 34mm 0.4 A 0.26 N.m
42SHD4046-24 17HS13-1334S 1.8° 34mm 1.33 A 0.22 N.m
42SHD0217-24B 17HS4401 1.8° 40mm 1.5 A 0.5 N.m
42SHD0192-24B 17HS15-1504S1 1.8° 40mm 1.5 A 0.45 N.m
42SHD0134-22B 17HS15-1704S 1.8° 40mm 1.7 A 0.44 N.m
42SHD0285-24B 17HS15-0404S 1.8° 40mm 0.4 A 0.4 N.m
42SHD4425-24B 17HS19-2004S1 1.8° 48mm 2.0 A 0.59 N.m
42SHD4463-24B 42BYGHW811 1.8° 48mm 2.5 A 0.48 N.m
42SHD0450-20BH 17HS8401S 1.8° 48mm 1.8A 0.52N.m
42SHD4813-24B 17HS24-2104S 1.8° 60mm 2.1 A 0.8 N.m





Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake 1 Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake 2 Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake 3 Nema 17 Stepper Motor 12V 42X42X34mm for Casun Brake 4





Please click the "Get  a quote" button below to tell us your requirements.
