GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > 20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase
20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase
20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase
20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase
20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase
20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase

20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 20SHD0003-20

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $5.94-$8.6

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

20x20mm NEMA 8 Stepper Motor

,

Casun Motor 15mNm 0.6A

,

NEMA 8 Stepper Motor Casun

Step Angel:
1.8°
Holding Torque:
20mN.m
Current:
0.6A
Motor Length:
30mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
20mN.m
Current:
0.6A
Motor Length:
30mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

20x20x33mm NEMA 8 Stepping Motor Manufacturer Mini Motor 15mN.m 0.6A for Medical Equipment

Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.6 A

Holding Torque

20 mN.m

Resistance

6.5 ohm

Inductance

2.0 mH

Rotor Inertia

2 g.cm²

Motor weight

0.06 kg

Number of leads

4

Connection

Bipolar

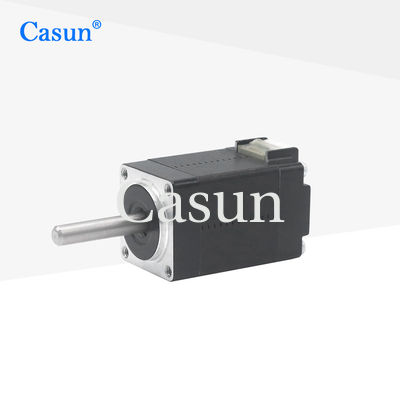

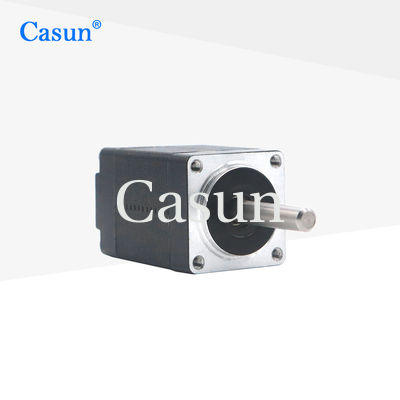

Appearance



20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase 0

Dimensions

20x20mm NEMA 8 Stepper Motor Casun Motor 15mNm 0.6A Two Phase 1







Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.












Tags:

2 Phase Bipolar Stepper Motor,

Nema 6 Bipolar Stepper Motor,

20x20mm NEMA 8 Stepper Motor
