Home > products > Hybrid Stepper Motor > 21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

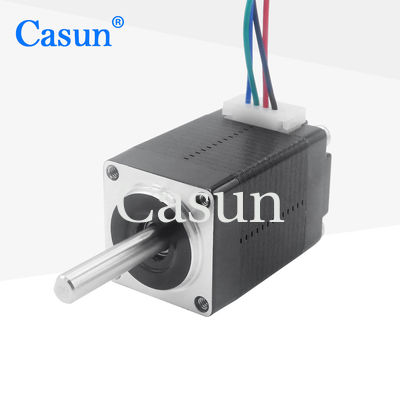

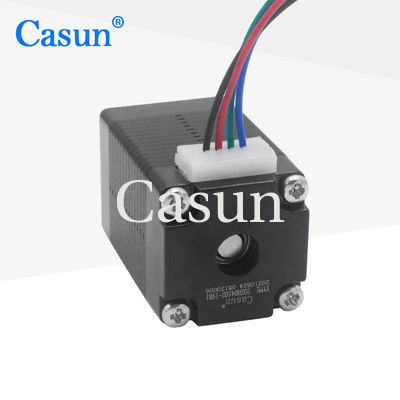

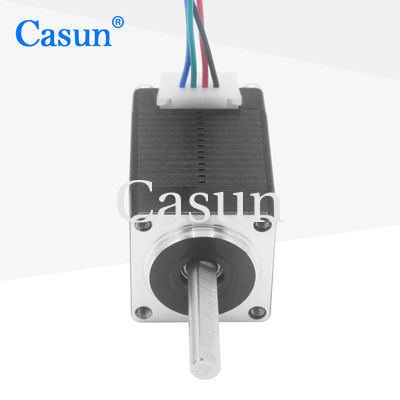

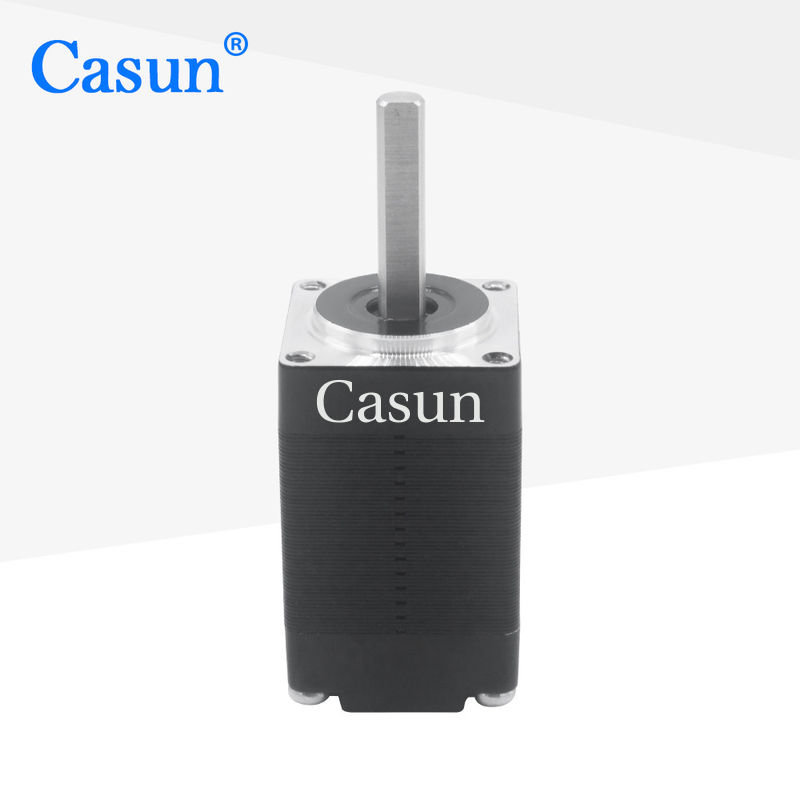

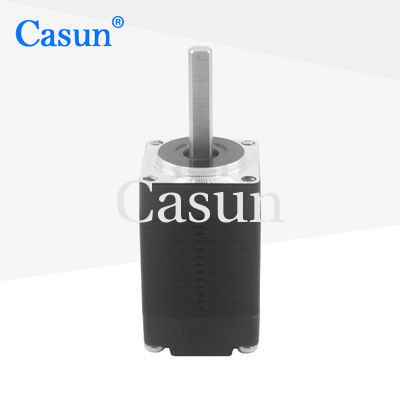

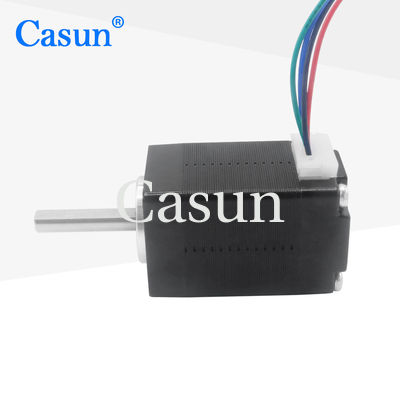

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires
21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires
21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires
21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires
21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires
21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 20SHD4502-19B1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $5.94-$8.6

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

Bipolar NEMA 8 Stepper Motor

,

21mNM NEMA 8 Stepper Motor

,

NEMA 8 1.8 Deg Stepper Motor

Step Angel:
1.8°
Holding Torque:
21mN.m
Current:
0.8A
Motor Length:
33mm
Shaft:
Milling Flat Shaft 19mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
21mN.m
Current:
0.8A
Motor Length:
33mm
Shaft:
Milling Flat Shaft 19mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 20mm base stepper motor has a simple structure, therefore it has high reliability and stability.

Medical and scientific equipment, Wearable technology, machine vision and 3D printers.



Features:

  • High accuracy and torque

  • Offer custom services

  • Available in single or double shaft versions

  • Different situations may call for a particular stepper motor model

  • The best solution will be offered by our engineers in contact with you within 48 hours





Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

21 mN.m

Resistance

4.5 ohm

Inductance

1.6 mH

Rotor Inertia

2.5 g-cm²

Motor weight

0.07 kg

Number of leads

4

Connection

Bipolar



Appearance



21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires 0

Dimensions

21mNM Bipolar NEMA 8 Stepper Motor 2 Phase 1.8 Deg Stepper Motor 4 Wires 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
