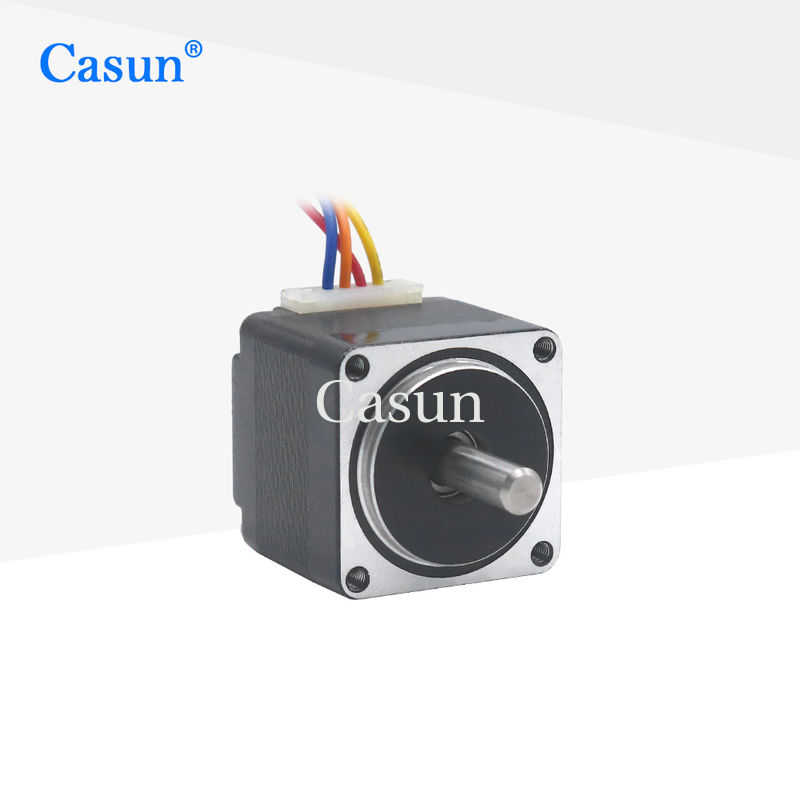

28mm Hybrid NEMA 11 Stepper Motor Micro Stepping Motor For Robot Camera

28mm Hybrid NEMA 11 Stepper Motor Micro Stepping Motor For Robot Camera

28mm Hybrid NEMA 11 Stepper Motor Micro Stepping Motor For Robot Camera

Brand Name: Casun
Model Number: 28SHD4401-20B1
MOQ: 1PC
Price: $5.94-$8.6
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
95mN.m
Current:
0.67A
Motor Length:
44mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

28mm Hybrid NEMA 11 Stepper Motor

,

NEMA 11 Micro Stepping Motor

,

28mm NEMA 11 Stepper Motor

Product Description

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Medical and scientific equipment, as well as household appliances, 3D printers, image scanners, and car navigation.



Features:

  • Each model of stepper motor can be suitable for different scenarios

  • Needed dealers! !

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Within 48 hours, one of our engineers will contact you with the best option





Motor Specifications

Step Angel

1.8 °

Fram Size

28 mm

Number of Phase

2 Phase

Rated Current

0.67 A

Holding Torque

95 mN.m

Resistance

6.8 ohm

Inductance

5 mH

Rotor Inertia

9 g-cm²

Motor weight

0.12 kg

Number of leads

4

Connection

Bipolar





Appearance



28mm Hybrid NEMA 11 Stepper Motor Micro Stepping Motor For Robot Camera 0

Dimensions

28mm Hybrid NEMA 11 Stepper Motor Micro Stepping Motor For Robot Camera 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.











Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

28mm Hybrid NEMA 11 Stepper Motor
