35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

  • High Light

    26mm 2 Phase Hybrid Stepper Motor

    ,

    35x35 Hybrid Stepper Motor

    ,

    Casun Hybrid Stepper Motor 12V

  • Step Angel
    1.8°
  • Holding Torque
    110mN.m
  • Current
    0.4A
  • Motor Length
    26mm
  • Shaft
    Round Shaft 23mm Length
  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROSH,ISO
  • Model Number
    35SHD0003-23H
  • Minimum Order Quantity
    1PC
  • Price
    $4.14-$6.98
  • Packaging Details
    Carton:36x29x14cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera

【35SHD0003】Stepper Motor Nema 35x35x26mm 1.8 Degree 2 Phase Hybrid 12V for Surveillance Camera

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

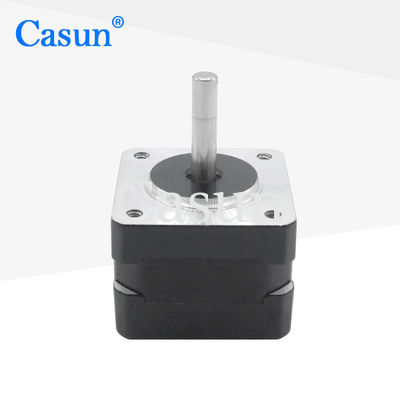

Appearance



35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera 0

Dimensions

35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera 1



Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

110 mN.m

Resistance

30 ohm

Inductance

24 mH

Rotor Inertia

12 g-cm²

Motor weight

0.15 kg

Number of leads

4

Connection

Bipolar









Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
