Casun 35mm Hybrid Stepper Motor NEMA 14 Stepper Motor For Stage Lighting

Casun 35mm Hybrid Stepper Motor NEMA 14 Stepper Motor For Stage Lighting

  • High Light

    Casun 35mm Hybrid Stepper Motor

    ,

    Casun NEMA 14 Stepper Motor

    ,

    35mm NEMA 14 Stepper Motor

  • Step Angel
    1.8°
  • Holding Torque
    220mN.m
  • Current
    1.2A
  • Motor Length
    40mm
  • Shaft
    Milling Flat Shaft 24mm Length
  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROSH,ISO
  • Model Number
    35SHD0810-24B
  • Minimum Order Quantity
    1PC
  • Price
    $4.14-$6.98
  • Packaging Details
    Carton:36x29x14cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

Casun 35mm Hybrid Stepper Motor NEMA 14 Stepper Motor For Stage Lighting

【35SHD0810】35x35×40mm Stepper Motor 1.8 Degree NEMA 14 Ordinary Model 0.22N.m for Stage Lighting



The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

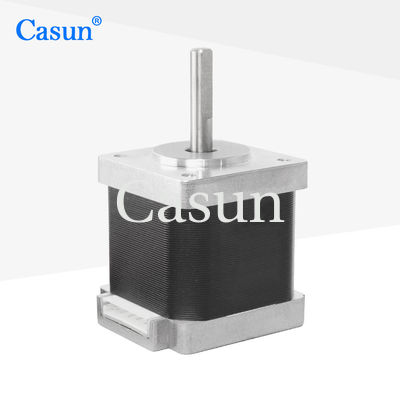

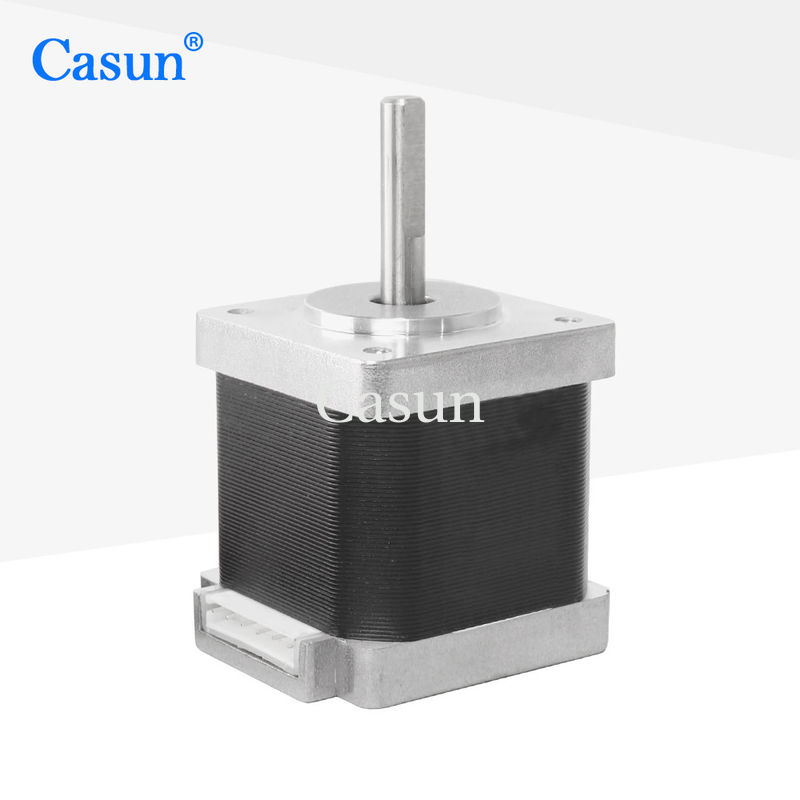

Appearance



Casun 35mm Hybrid Stepper Motor NEMA 14 Stepper Motor For Stage Lighting 0

Dimensions

Casun 35mm Hybrid Stepper Motor NEMA 14 Stepper Motor For Stage Lighting 1



Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

220 mN.m

Resistance

4.0 ohm

Inductance

7.0 mH

Rotor Inertia

18 g-cm²

Motor weight

0.21 kg

Number of leads

4

Connection

Bipolar









Torque Curves



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
