Home > products > Hybrid Stepper Motor > 0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase

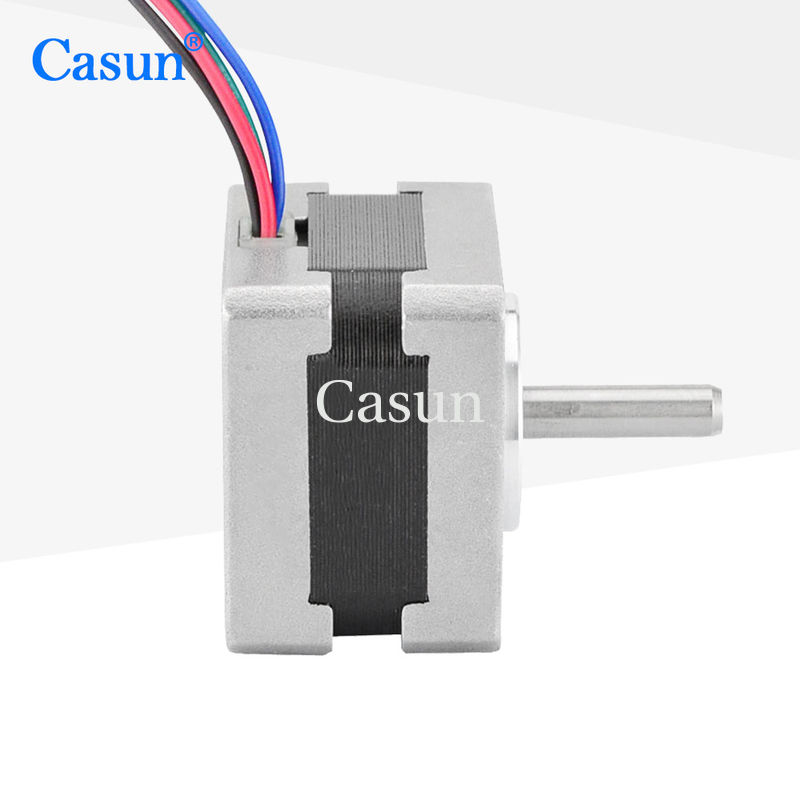

0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase
0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase
0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase
0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase
0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase
0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase
0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase

0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 35SHD4001-20B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

NEMA 14 Stepper Motor 10Ncm

,

0.4A NEMA 14 Stepper Motor

,

10Ncm 35mm Stepper Motor

Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.4A
Motor Length:
26mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.4A
Motor Length:
26mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 35mm Hybrid Stepper Motor Series has fast response speed and can start and stop quickly.

Small automation systems, water pumps, electric door locks, image scanners



Features:

  • Bipolar or unipolar versions available

  • Accuracy, reliability, and adaptability

  • Each stepper motor type may be used in a variety of situations

  • Wanted dealers! !

  • Customizations on request





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

100 mN.m

Resistance

20 ohm

Inductance

20 mH

Rotor Inertia

12 g-cm²

Motor weight

0.12 kg

Number of leads

4

Connection

Bipolar



Appearance



0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase 0

Dimensions

0.4A NEMA 14 Stepper Motor 10Ncm 35mm Stepper Motor 4 Phase 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
