GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > 10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase

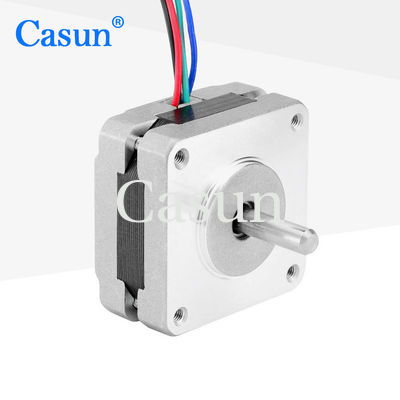

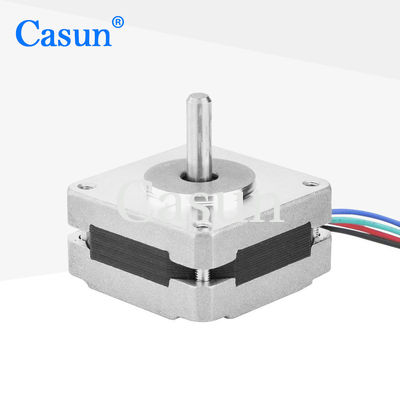

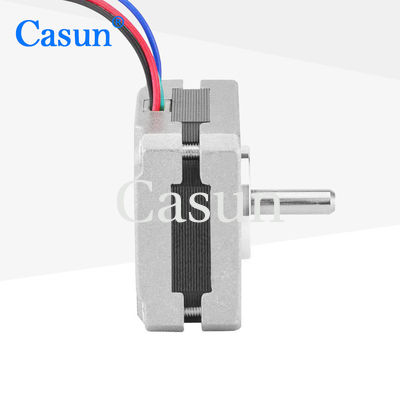

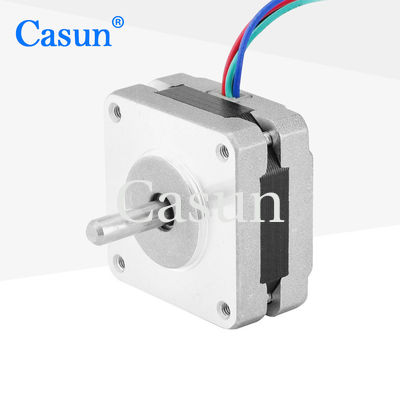

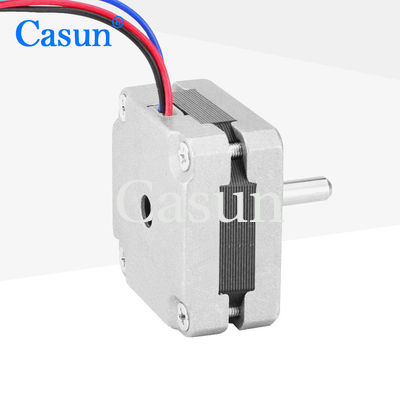

10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase
10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase
10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase
10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase
10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase
10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase
10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase

10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 39SHD0519-20

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

10.4V NEMA 16 Stepper Motor

,

NEMA 16 Stepper Motor DC

,

Mini CNC Router Stepper Motor

Step Angel:
1.8°
Holding Torque:
80mN.m
Current:
0.2A
Motor Length:
22mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
80mN.m
Current:
0.2A
Motor Length:
22mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The rotation of a 39mm step motor can be very precise, which is a characteristic that other types of motors cannot compare.

Has a small volume and is suitable for electronic devices, smart homes, and other areas with limited volume.



Features:

  • Bipolar or unipolar versions available

  • Deliver "multiple international certifications" for electrical and high-tech devices.

  • Available in single or double shaft versions

  • 12 years old and has served more than 800 clients in China

  • Needed dealers! !



Motor Specifications



Step Angel

1.8 °

Fram Size

39 mm

Number of Phase

4 Phase

Rated Current

0.2 A

Holding Torque

80 mN.m

Resistance

52 ohm

Inductance

22 mH

Rotor Inertia

15 g-cm²

Motor weight

0.17 kg

Number of leads

4

Connection

Bipolar

Appearance



10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase 0

Dimensions

10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase 1








Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
39SHD0001-20 100mN.m 1.8° 20mm Round Shaft
20mm		 0.48A
39SHD0504-20 100mN.m 1.8° 22mm Round Shaft
20mm		 0.4A
39SHD0611-20 200mN.m 1.8° 25mm Round Shaft
20mm		 0.4A
39SHD0302-20 220mN.m 1.8° 34mm Round Shaft
20mm		 0.4A
39SHD0401-24 220mN.m 1.8° 38mm Round Shaft
24mm		 0.4A
39SHD0801-24B 220mN.m 1.8° 48mm D Shaft
24mm		 0.4A





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase 2 10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase 3 10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase 4 10.4V NEMA 16 Stepper Motor DC Electric Mini CNC Router Stepper Motor 4 Phase 5



Please click the "Get  a quote" button below to tell us your requirements.
