100mN.M 3D Printer Stepper Motor 12.6V NEMA16 Four Phase Stepper Motor

100mN.M 3D Printer Stepper Motor 12.6V NEMA16 Four Phase Stepper Motor

100mN.M 3D Printer Stepper Motor

3D Printer Stepper Motor 12.6V

NEMA16 Four Phase Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROSH,ISO

Model Number:

39SHD0515-20

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.28A
Motor Length:
22mm
Shaft:
Round Shaft 20mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$4.14-$6.98
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

The 39mm stepper motor's control approach is similarly fairly straightforward and only involves sending the motor a pulse signal.

This technique is simple to use and reasonably simple to learn.

Long service life and reliable operation provide long-term reliability.



Features:

  • With a 12-year history in China and more than 800 clients served

  • Professional drivetrain solution specialist

  • Available in variations with a single or double shaft

  • CE and RoHS approved

  • We provide individualised services and welcome contract manufacturing





Motor Specifications



Step Angel

1.8 °

Fram Size

39 mm

Number of Phase

4 Phase

Rated Current

0.28 A

Holding Torque

100 mN.m

Resistance

45 ohm

Inductance

20 mH

Rotor Inertia

15 g-cm²

Motor weight

0.17 kg

Number of leads

4

Connection

Bipolar

Appearance

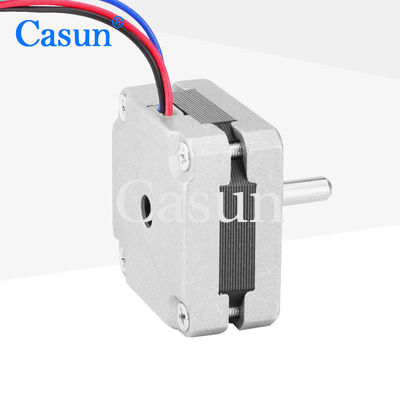

100mN.M 3D Printer Stepper Motor 12.6V NEMA16 Four Phase Stepper Motor 0

Dimensions

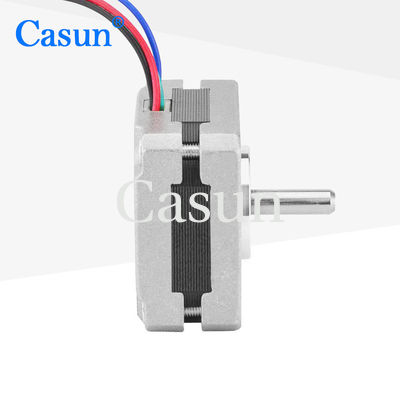

100mN.M 3D Printer Stepper Motor 12.6V NEMA16 Four Phase Stepper Motor 1






Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
39SHD0001-20 100mN.m 1.8° 20mm Round Shaft
20mm
0.48A
39SHD0504-20 100mN.m 1.8° 22mm Round Shaft
20mm
0.4A
39SHD0611-20 200mN.m 1.8° 25mm Round Shaft
20mm
0.4A
39SHD0302-20 220mN.m 1.8° 34mm Round Shaft
20mm
0.4A
39SHD0401-24 220mN.m 1.8° 38mm Round Shaft
24mm
0.4A
39SHD0801-24B 220mN.m 1.8° 48mm D Shaft
24mm
0.4A





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

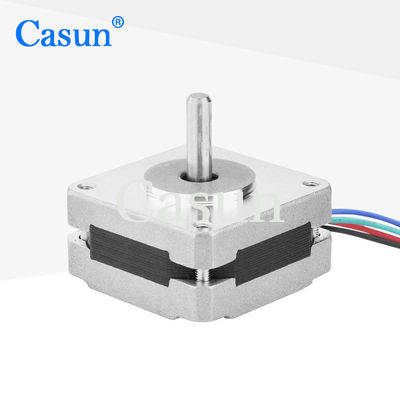

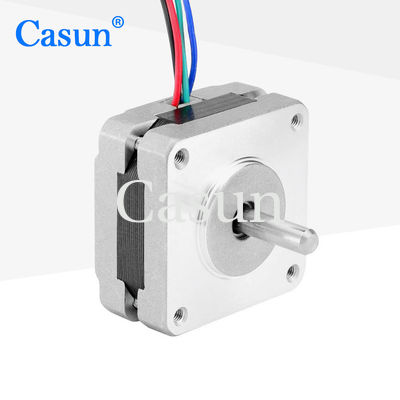

100mN.M 3D Printer Stepper Motor 12.6V NEMA16 Four Phase Stepper Motor 2 100mN.M 3D Printer Stepper Motor 12.6V NEMA16 Four Phase Stepper Motor 3 100mN.M 3D Printer Stepper Motor 12.6V NEMA16 Four Phase Stepper Motor 4 100mN.M 3D Printer Stepper Motor 12.6V NEMA16 Four Phase Stepper Motor 5
