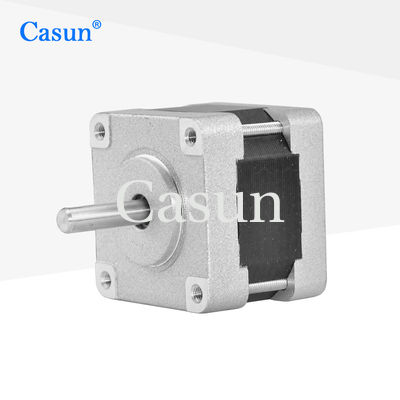

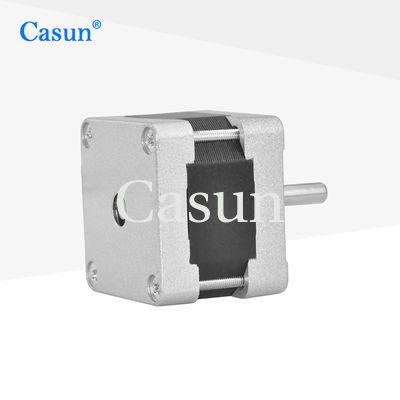

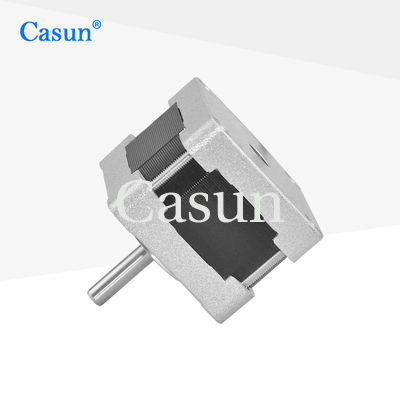

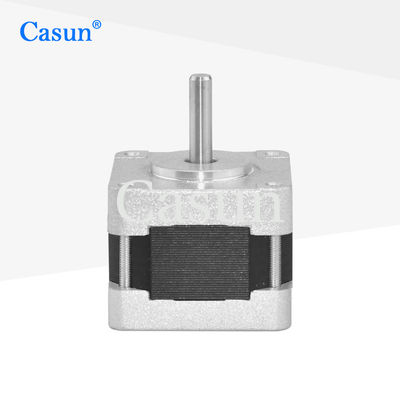

Casun 34mm 210 MNm NEMA 16 Stepper Motor For CNC Router 12V

Casun 34mm 210 MNm NEMA 16 Stepper Motor For CNC Router 12V

210 mNm NEMA 16 Stepper Motor

NEMA16 Stepper Motor For CNC Router

Casun Stepper Motor For CNC Router

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

39SHD0308-18

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
210mN.m
Current:
0.4A
Motor Length:
34mm
Shaft:
Round Shaft 18mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$4.14-$6.98
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

The 39mm Hybrid Stepper Motor Series good dynamic characteristics: high positioning accuracy, high output torque, high response frequency, and low operating noise.

Robots, 3D printers, and small automation equipment



Features:

  • We provide specialised services and welcome contract manufacturing.

  • High stability, suitable for various environmental operations.

  • Available in single or double shaft versions

  • More than 800 consumers have been served over its 12 years of operation in China.

  • Customizations on request





Motor Specifications



Step Angel

1.8 °

Fram Size

39 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

210 mN.m

Resistance

30 ohm

Inductance

45 mH

Rotor Inertia

20 g-cm²

Motor weight

0.18 kg

Number of leads

4

Connection

Bipolar

Appearance



Casun 34mm 210 MNm NEMA 16 Stepper Motor For CNC Router 12V 0

Dimensions

Casun 34mm 210 MNm NEMA 16 Stepper Motor For CNC Router 12V 1






Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
39SHD0001-20 100mN.m 1.8° 20mm Round Shaft
20mm
0.48A
39SHD0504-20 100mN.m 1.8° 22mm Round Shaft
20mm
0.4A
39SHD0611-20 200mN.m 1.8° 25mm Round Shaft
20mm
0.4A
39SHD0302-20 220mN.m 1.8° 34mm Round Shaft
20mm
0.4A
39SHD0401-24 220mN.m 1.8° 38mm Round Shaft
24mm
0.4A
39SHD0801-24B 220mN.m 1.8° 48mm D Shaft
24mm
0.4A





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

Casun 34mm 210 MNm NEMA 16 Stepper Motor For CNC Router 12V 2 Casun 34mm 210 MNm NEMA 16 Stepper Motor For CNC Router 12V 3 Casun 34mm 210 MNm NEMA 16 Stepper Motor For CNC Router 12V 4 Casun 34mm 210 MNm NEMA 16 Stepper Motor For CNC Router 12V 5



Please click the "Get  a quote" button below to tell us your requirements.
