Home > products > Hybrid Stepper Motor > 14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting

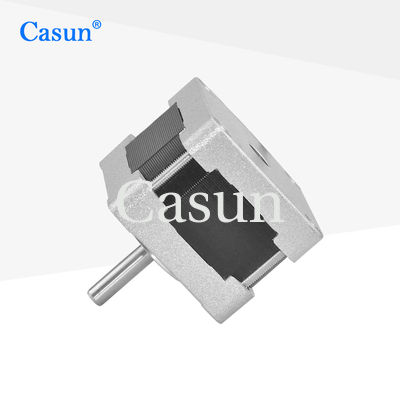

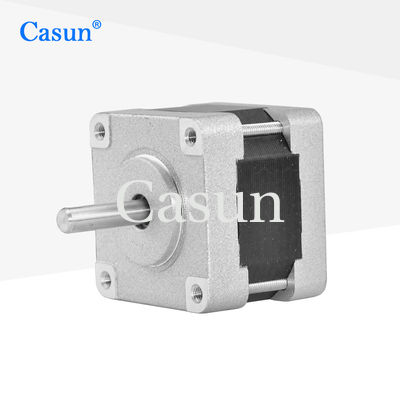

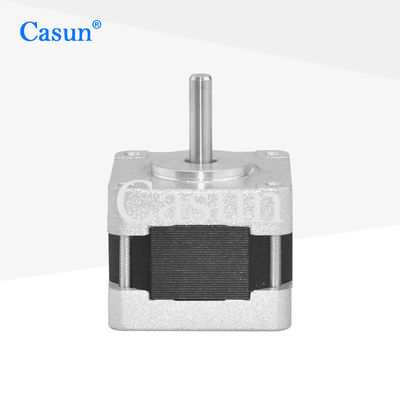

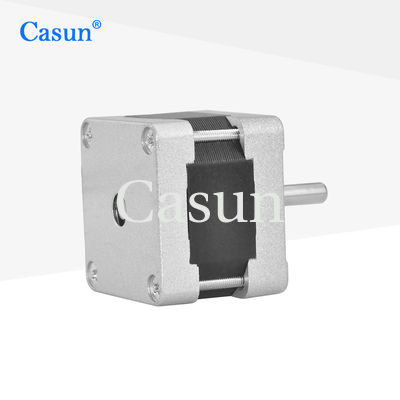

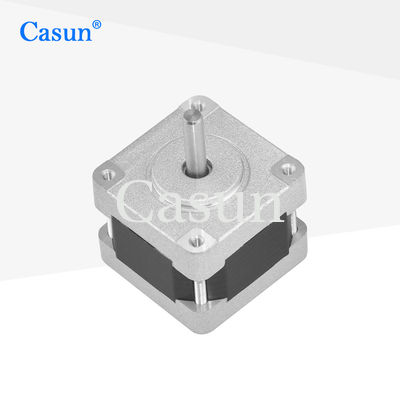

14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting
14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting
14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting
14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting
14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting
14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting
14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting

14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 39SHD0302-20

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

14V 0.4A NEMA 16 Stepper Motor

,

0.4A NEMA 16 Stepper Motor 4 Wire

,

20mN.M Stepper Motor 4 Wire

Step Angel:
1.8°
Holding Torque:
220mN.m
Current:
0.4A
Motor Length:
34mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
220mN.m
Current:
0.4A
Motor Length:
34mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The medium size of the 39mm stepper motor means it can meet common application scenarios

Has high anti-interference ability and can resist external electromagnetic interference



Features:

  • Bipolar or unipolar versions available

  • Ten-year warranty and secure shopping

  • Available in single or double shaft versions

  • CE and RoHS approved

  • 12 years old and has served more than 800 clients in China.

Appearance



14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting 0

Dimensions

14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting 1





Motor Specifications



Step Angel

1.8 °

Fram Size

39 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

220 mN.m

Resistance

35 ohm

Inductance

45 mH

Rotor Inertia

20 g-cm²

Motor weight

0.18 kg

Number of leads

4

Connection

Bipolar








Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
39SHD0001-20 100mN.m 1.8° 20mm Round Shaft
20mm		 0.48A
39SHD0504-20 100mN.m 1.8° 22mm Round Shaft
20mm		 0.4A
39SHD0611-20 200mN.m 1.8° 25mm Round Shaft
20mm		 0.4A
39SHD0302-20 220mN.m 1.8° 34mm Round Shaft
20mm		 0.4A
39SHD0401-24 220mN.m 1.8° 38mm Round Shaft
24mm		 0.4A
39SHD0801-24B 220mN.m 1.8° 48mm D Shaft
24mm		 0.4A





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting 2 14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting 3 14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting 4 14V 0.4A NEMA 16 Stepper Motor 4 Wire 20mN.M For Stage Lighting 5



Please click the "Get  a quote" button below to tell us your requirements.
