39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS
  • 39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS
  • 39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS
  • 39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS
  • 39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS
  • 39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS
  • 39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS
  • 39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS

39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS

Place of Origin CHINA
Brand Name Casun
Certification CE,ROSH,ISO
Model Number 39SHY4001-30
Product Details
Step Angel:
1.8°
Holding Torque:
120mN.m
Current:
0.4A
Motor Length:
25mm
Shaft:
Round Shaft 30mm Length
High Light:

39x39mm Stepper Motor Two Phase

,

39mm Four Wire Stepper Motor

,

0.12N.M Four Wire Stepper Motor

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$4.14-$6.98
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

The 39mm stepper motor is a smaller type of stepper motor that has some unique advantages compared to other larger stepper motors

Working in a low-power manner, it is more energy-efficient and energy-efficient.





Features:

  • Bipolar or unipolar versions available

  • Every stepper motor model has use in a variety of situations.

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Within 48 hours, one of our engineers will contact you with the best option.





Motor Specifications



Step Angel

1.8 °

Fram Size

39 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

120 mN.m

Resistance

23.3 ohm

Inductance

19.8 mH

Rotor Inertia

20 g-cm²

Motor weight

0.17 kg

Number of leads

4

Connection

Bipolar

Appearance

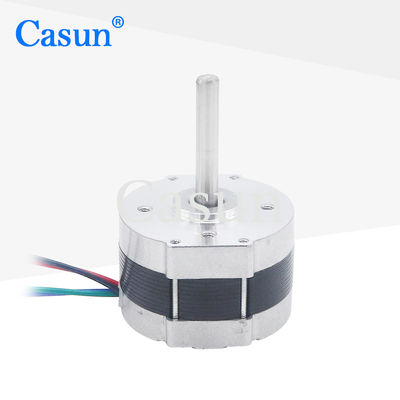

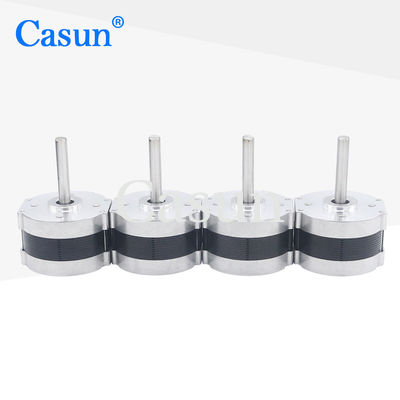

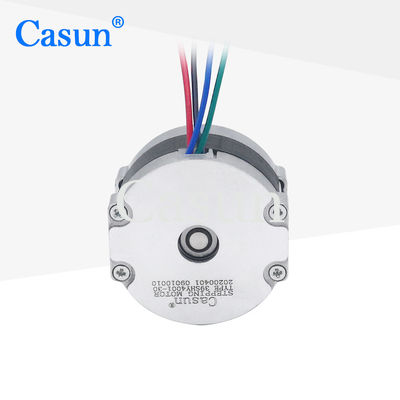

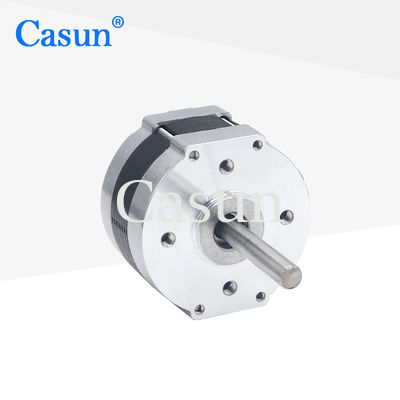

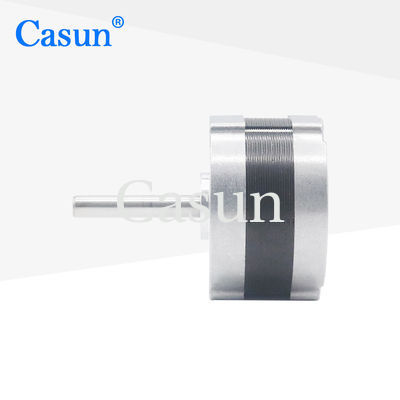

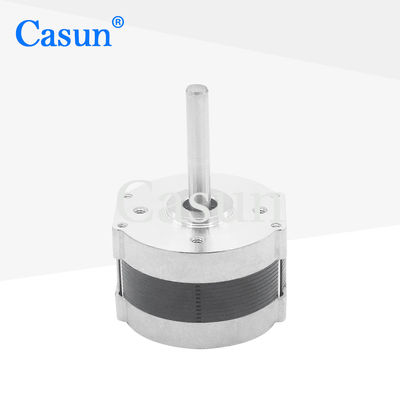

39x39mm 0.12N.M Four Wire Stepper Motor Two Phase NEMA 16 CE RoHS 0
