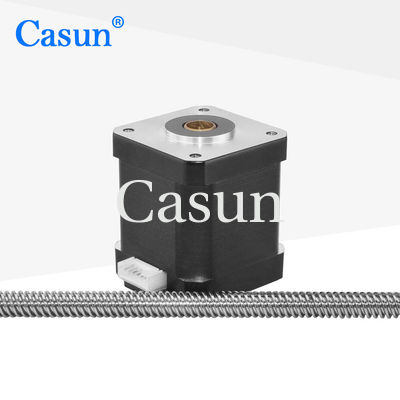

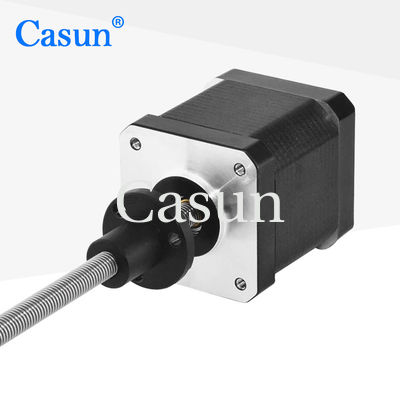

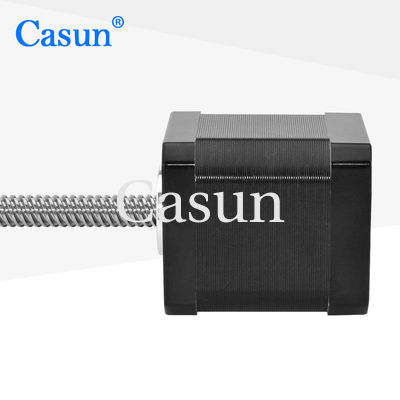

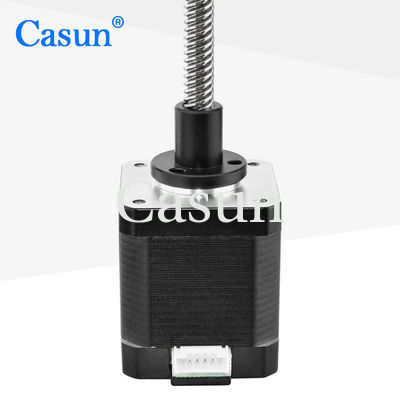

42X48mm 0.4A NEMA 17 Stepper Motor With Lead Screw Stepping Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0410-300NTP

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $16.5-$17.5

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
High Light:

0.4A NEMA 17 Stepper Motor

,

0.4A Lead Screw Stepping Motor

,

42X48mm Lead Screw Stepping Motor

Color:
Black
Current:
0.4A
Holding Torque:
450mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
0.4A
Holding Torque:
450mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA17 stepper motor with lead screw holding torque 42mmX48mm 0.4A lead screw stepper motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

42X48mm 0.4A NEMA 17 Stepper Motor With Lead Screw Stepping Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



0.4A

Holding Torque



450 mN.m

Resistance



30ohm

Inductance



45mH

Rotor Inertia



72g-cm²

Motor weight



0.38kg

Lead Screw



Tr8X2

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

42X48mm 0.4A NEMA 17 Stepper Motor With Lead Screw Stepping Motor 1 42X48mm 0.4A NEMA 17 Stepper Motor With Lead Screw Stepping Motor 2 42X48mm 0.4A NEMA 17 Stepper Motor With Lead Screw Stepping Motor 3 42X48mm 0.4A NEMA 17 Stepper Motor With Lead Screw Stepping Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
