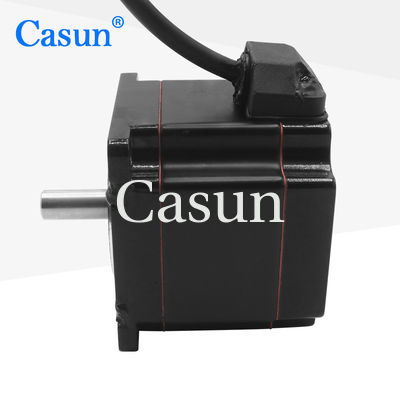

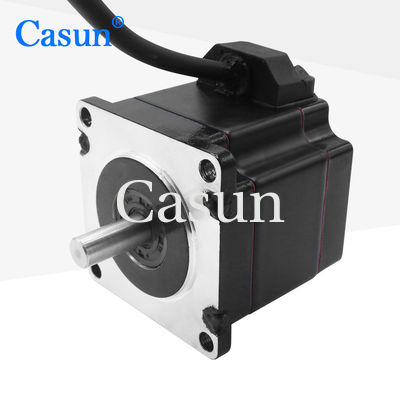

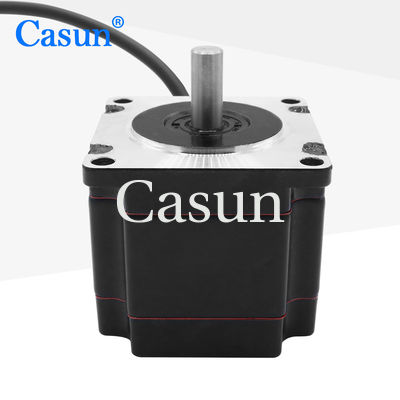

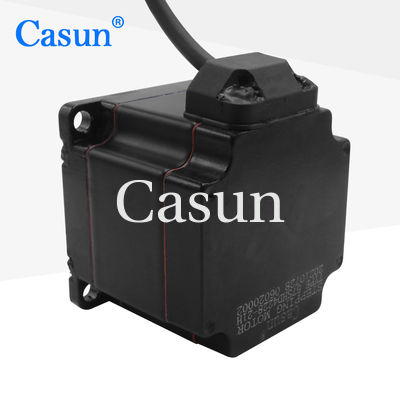

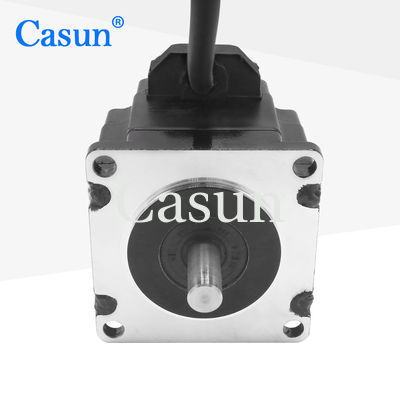

Casun Hybrid Waterproof Stepper Motor NEMA 23 51mm Body 1.16N.M For Smart Device

Casun Hybrid Waterproof Stepper Motor NEMA 23 51mm Body 1.16N.M For Smart Device

Brand Name:	Casun
Model Number:	57SHD4228-21H
MOQ:	1PC
Price:	$9.49-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

1100mN.m

Current:

2.5A

Motor Length:

51mm

Shaft:

Round Shaft 21mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Casun Hybrid Waterproof Stepper Motor

Waterproof Stepper Motor NEMA 23

1.16N.M Stepper Motor NEMA 23

Product Description

Casun Hybrid Waterproof Stepper Motor NEMA 23 51mm Body 1.16N.M For Smart Device

Product Overview

The 57mm Hybrid Stepper Motor delivers precise rotation angle control, making it ideal for applications requiring high-precision positioning. With millisecond-level response speed, it's perfectly suited for situations demanding rapid speed response.

Key Features

Available in unipolar or bipolar versions
Hybrid stepper motor construction
Variations with single or double shaft options
Expert manufacturing research and development
Custom modifications available upon request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.5 A
Holding Torque	1100 mN.m
Resistance	1.15 ohm
Inductance	3.3 mH
Rotor Inertia	72 g-cm²
Motor Weight	0.62 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Customization Options

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Get a Quote
