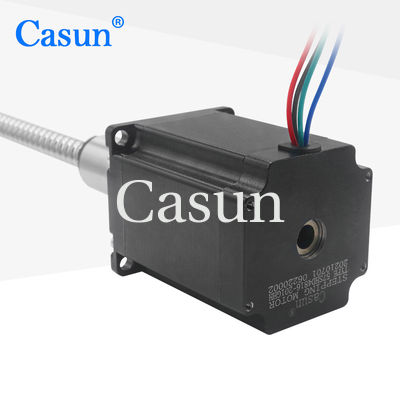

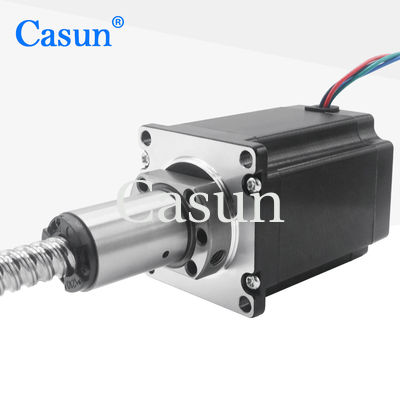

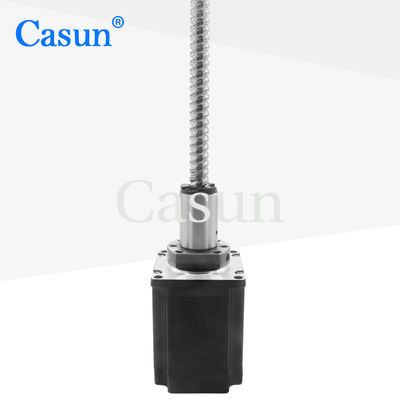

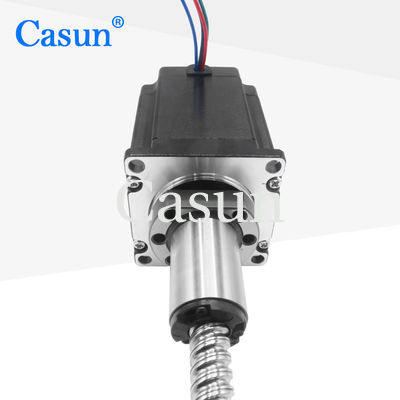

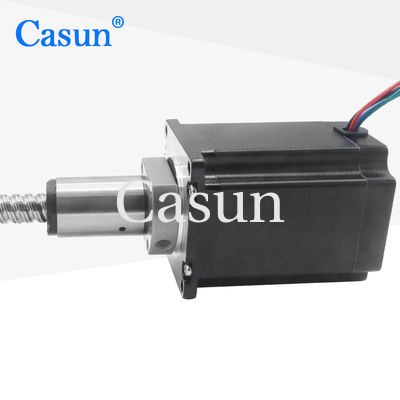

2000mNm 4A NEMA 23 Ball Screw Stepper Motor Hybrid Linear Actuator 76mm 24mm

2000mNm 4A NEMA 23 Ball Screw Stepper Motor Hybrid Linear Actuator 76mm 24mm

Brand Name:	Casun
Model Number:	57SHD4816-201GHH
MOQ:	1PC
Price:	$100-$102
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

Holding Torque:

2000mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

4A NEMA 23 Ball Screw

2000mNm NEMA 23

76mm 24mm Ball Screw Stepper Motor

Product Description

Nema 23 External Ball Screw Linear Stepper Motor 2000mNm 4.0A 76mm 24mm Diameter Lead Length 201mm For 3D

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	42 mm
Number of Phase	2 Phase
Rated Current	3A
Holding Torque	2000 mN.m
Resistance	0.95ohm
Inductance	3.6mH
Rotor Inertia	460g-cm²
Motor weight	1.4kg
Lead Screw	SPS01210-2.8
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm 34 mm 40 mm 48 mm 60 mm	5	2	20-1000 mm
		8
	6.35	1.27
		3.175
		6.35
	6.5	3
		6.35
	8	1
		2
		4
		8
		12

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

2000mNm 4A NEMA 23 Ball Screw Stepper Motor Hybrid Linear Actuator 76mm 24mm 1

Please click the "Get a quote" button below to tell us your requirements.

Tags:

Vision System Ball Screw Stepper Motor

NEMA 8 Ball Screw Stepper Motor

25mm Ball Screw Stepper Motor

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine

Get Best Price

NEMA 8 Ball Screw Stepper Motor 0.5A 25mm Body For Vision System

Get Best Price

Ball Screw Stepper Motor NEMA 17 1.28A For Automated Assembly Lines

Get Best Price

Nema 17 Ball Screw Stepper Motor 34mm Bady 0.32Nm For CNC 3D Printer 4-lead

Get Best Price

NEMA 17 Ball Lead Screw Stepper Motor 570mN.M Stepping Motor For Automation Industry

Get Best Price
