Home > products > Non Captive Stepper Motor > 42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M

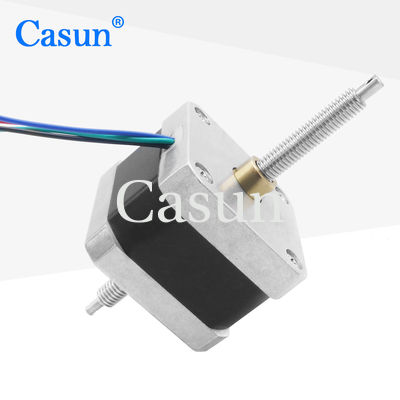

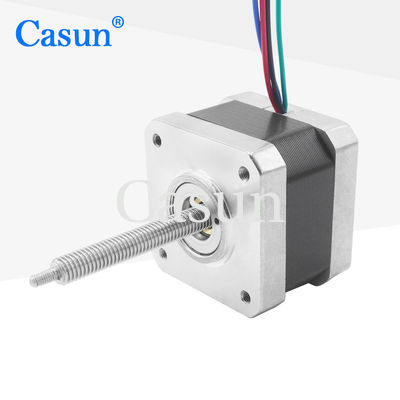

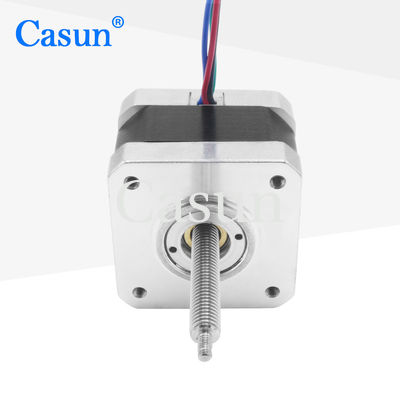

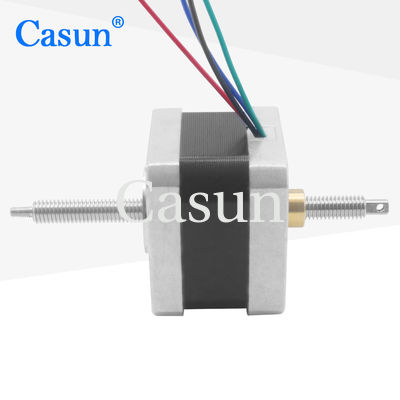

42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M
42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M
42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M
42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M
42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M
42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M

42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD40114-96TP1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $17.5-$18

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Through Screw Non Captive Stepper Motor

,

42X42mm Non Captive Stepper Motor

,

1.2Amp Stepper Motor Nema 17

Color:
Black
Current:
1.2Amp
Holding Torque:
260mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
1.2Amp
Holding Torque:
260mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Nema17 stepper motor 42mmX42mm through screw motor Non Captive 42 motor with screw for CNC milling machin

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.2Amp

Holding Torque



260mN.m

Resistance



2.5ohm

Inductance



3.3mH

Rotor Inertia



38g-cm²

Motor weight



0.2kg

Lead Screw



Tr6.35X1

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M 1 42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M 2 42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M 3 42X42mm Through Screw Non Captive Stepper Motor Nema 17 1.2Amp 260mN.M 4





Please click the "Get  a quote" button below to tell us your requirements.












Tags:
