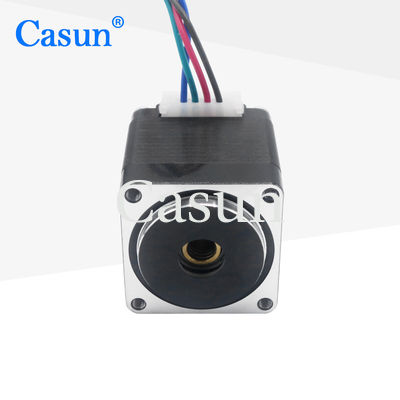

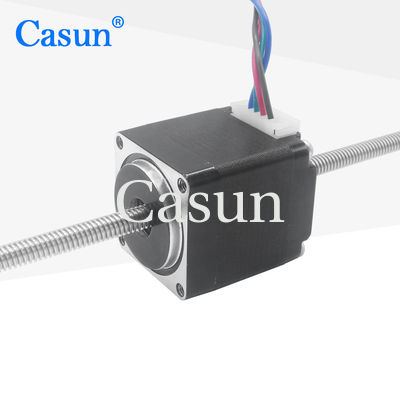

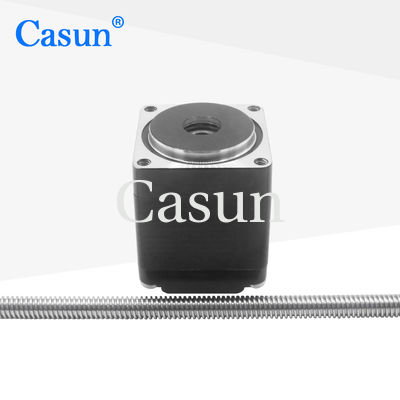

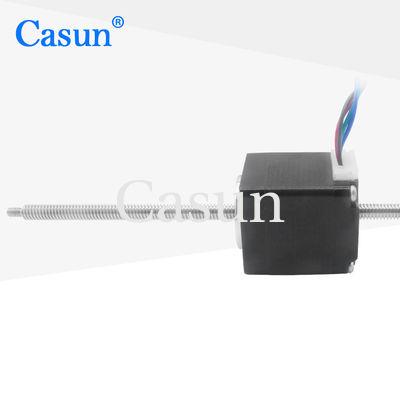

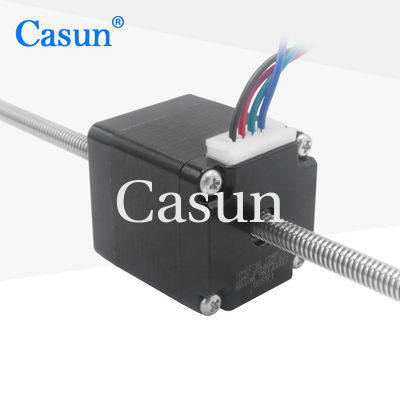

Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine
  • Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine
  • Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine
  • Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine
  • Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine
  • Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine
  • Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine

Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 28SHD4207-188TT
Product Details
Color:
Black
Current:
0.8Amp
Holding Torque:
80mN.m
High Light:

Nema11 Non Captive Stepper Motor

,

Casun SMT Non Captive Stepper Motor

,

Casun stepper motor for milling machine

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$9.94-$15
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

SMT Nema11 stepper motor Through screw motor lead 8mm 100/200/300/400mm motor with screw for CNC milling machin

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

 Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.8Amp

Holding Torque



80mN.m

Resistance



5.8ohm

Inductance



4.1mH

Rotor Inertia



9g-cm²

Motor weight



0.12kg

Lead Screw



Tr5X2

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine 1 Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine 2 Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine 3 Casun SMT Nema11 Non Captive Stepper Motor For CNC Milling Machine 4





Please click the "Get  a quote" button below to tell us your requirements.
