Home > products > Non Captive Stepper Motor > 20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine

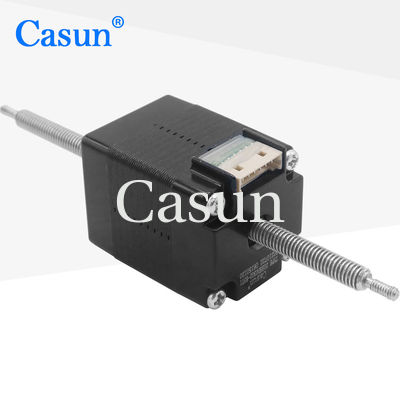

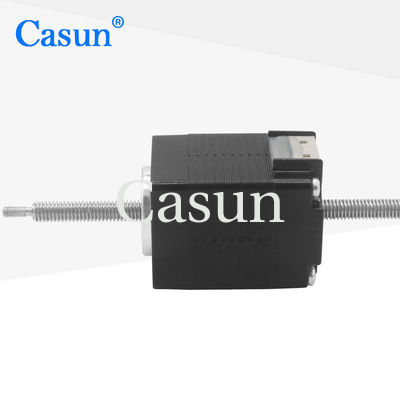

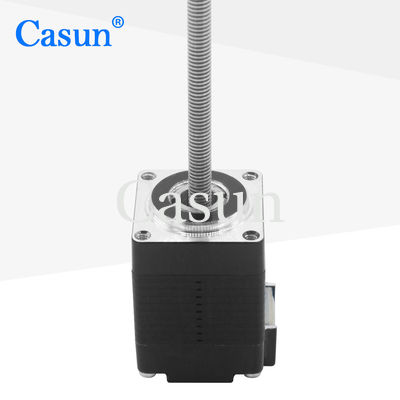

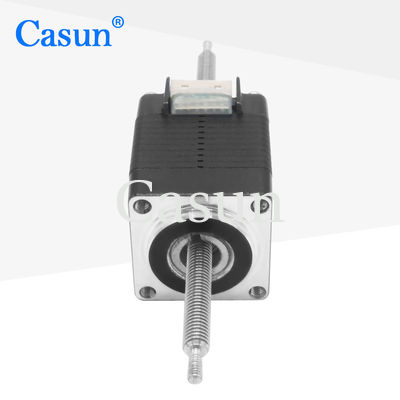

20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine
20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine
20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine
20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine
20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine
20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine

20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 20SHD0302-83T1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $13-$13.5

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

20mmx20mm Nema 17

,

Nema 17 Non Captive Stepper Motor

,

20mm Non Captive Stepper Motor

Color:
Black
Current:
0.5Amp
Holding Torque:
15mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
0.5Amp
Holding Torque:
15mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Nema17 Non Captive Stepper Motor Through Screw Motor 20mmx20mm Stepping Motor with Screw for STM CNC Milling Machine

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.5Amp

Holding Torque



15mN.m

Resistance



5.1ohm

Inductance



1.5mH

Rotor Inertia



2g-cm²

Motor weight



0.08kg

Lead Screw



Tr3.35X0.6096

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine 1 20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine 2 20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine 3 20mmx20mm Nema 8 Non Captive Stepper Motor For STM CNC Milling Machine 4





Please click the "Get  a quote" button below to tell us your requirements.












Tags:
