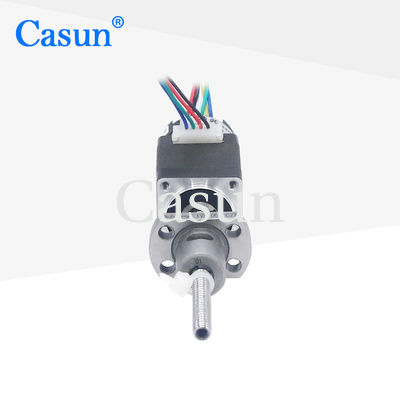

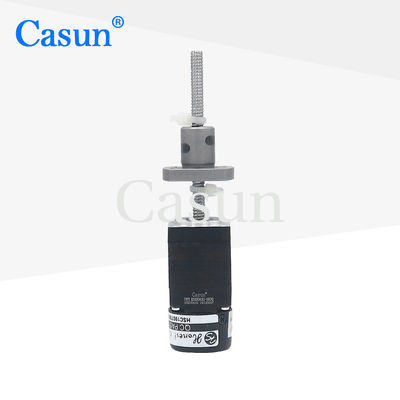

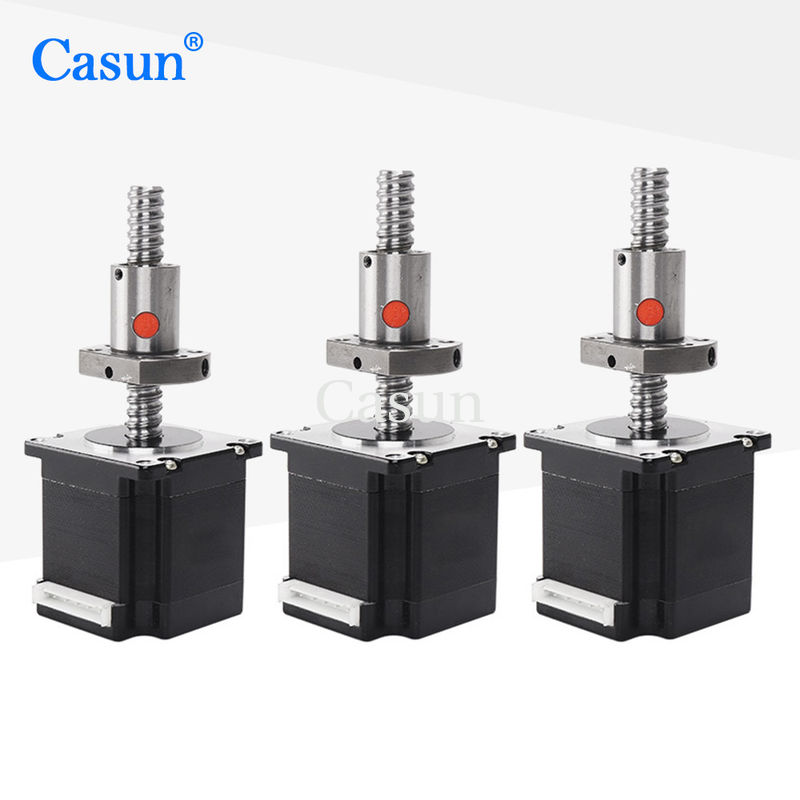

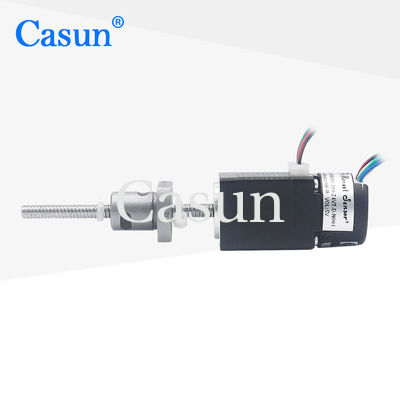

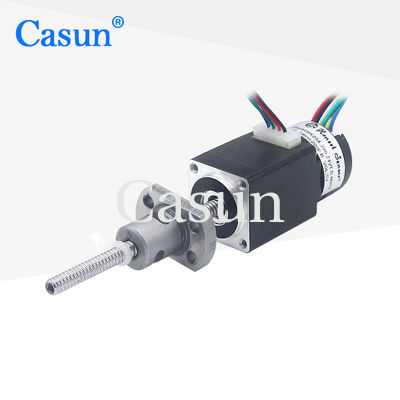

14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor

14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor

14mN.M Nema8 Stepper Motor

Nema8 Stepper Motor With Ball Screw

14mN.M Nema8 Ball Screw

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

B20SHD4351-56GPQ

Contact Us

Request A Quote
Product Details
Color:
Black
Current:
0.5A
Holding Torque:
14mN.m
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$24.94-$35
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

Nema8 14mN.m 0.5mp Stepper Motor with ball screw L200/250/300MM motor for Drawing instrument

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

 14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20mm

Number of Phase



2 Phase

Rated Current



0.5A

Holding Torque



14mN.m

Resistance



5.5ohm

Inductance



1.5mH

Rotor Inertia



2g-cm²

Motor weight



0.08kg

Lead Screw



SF0401

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor 1 14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor 2 14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor 3 14mN.M Nema8 Stepper Motor With Ball Screw L200/250/300MM Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
