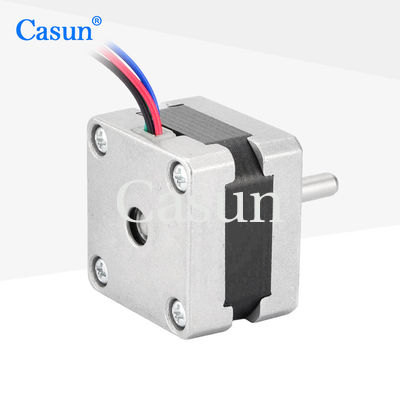

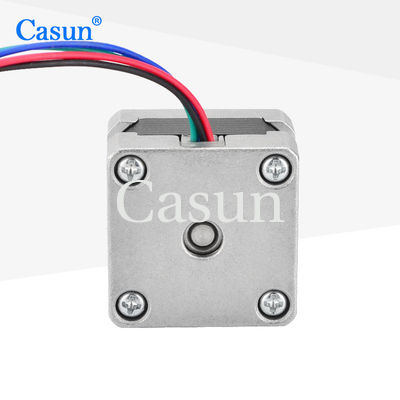

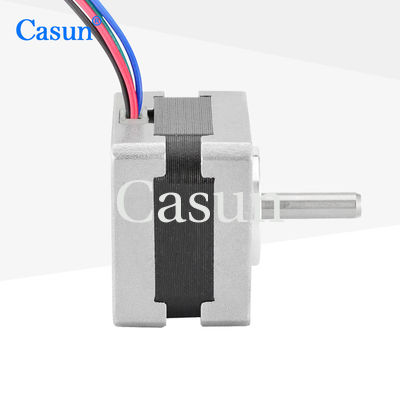

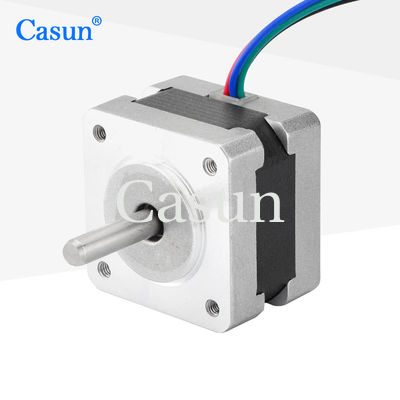

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm

name

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm

Brand Name: Casun
Model Number: 35SHD0001-20
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.4A
Rated Voltage:
12V
Motor Length:
26mm
Shaft:
D Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Casun NEMA 14 Stepper Motor

,

Casun 12V DC Stepper Motor

,

35X35x26mm Stepper Motor

Product Description

High Torque Casun 0.4A NEMA 14 Stepper Motor 35mm 12V DC Stepper Motor

35X35x26mm 0.4A 2 Phase Bipolar Hybrid 12V DC NEMA 14 Thin Stepper Motor

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

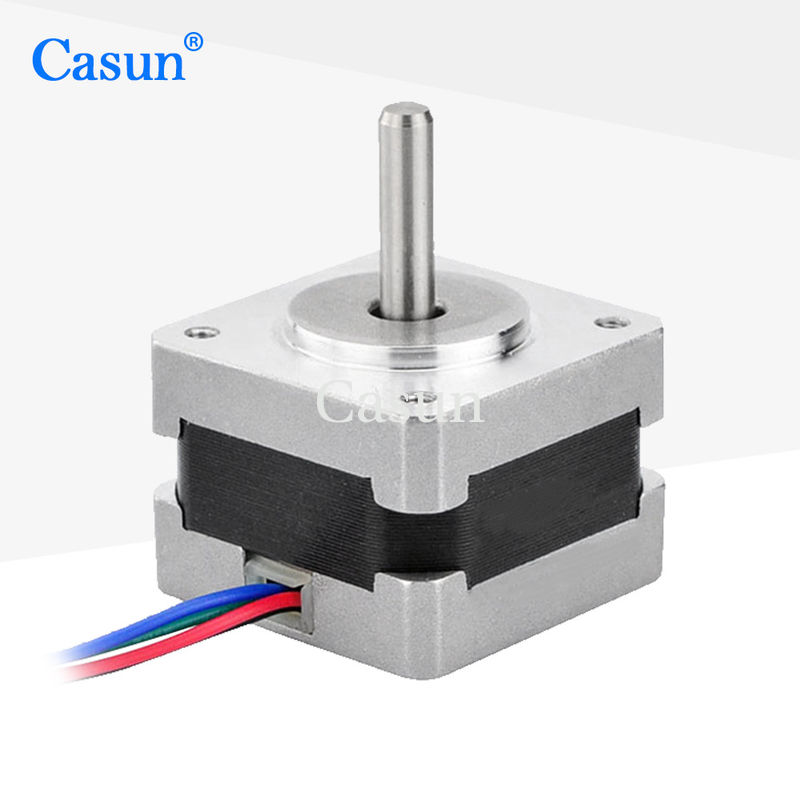

Appearance

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 0

Dimensions

Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 1







Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



0.4A

Holding Torque



100 mN.m

Resistance



20 ohm

Inductance



20 mH

Rotor Inertia



12 g-cm²

Motor weight



0.15 kg

Number of leads



4

Connection



Bipolar









Torque Curves





Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 2











Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 3 Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 4 Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 5 Casun NEMA 14 Stepper Motor 12V DC Stepper Motor 35X35x26mm 6



Please click the "Get  a quote" button below to tell us your requirements.
