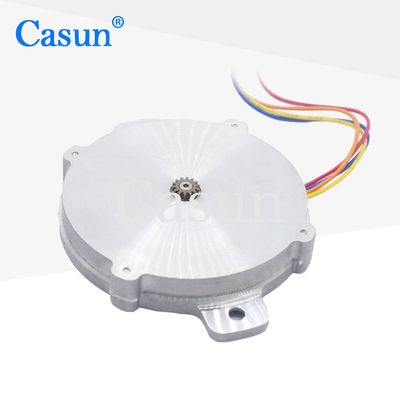

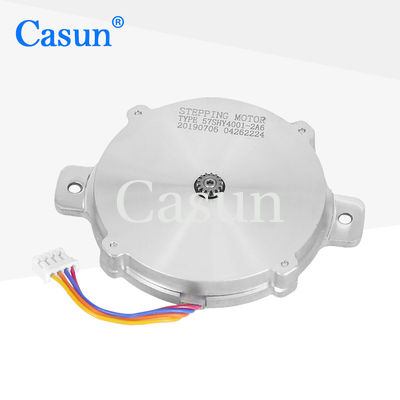

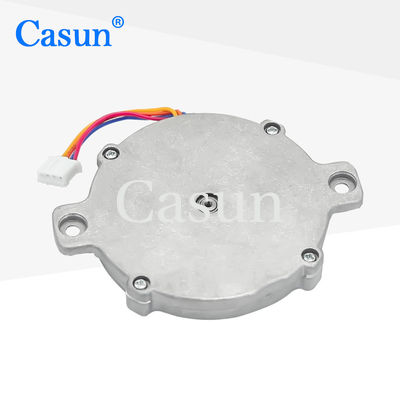

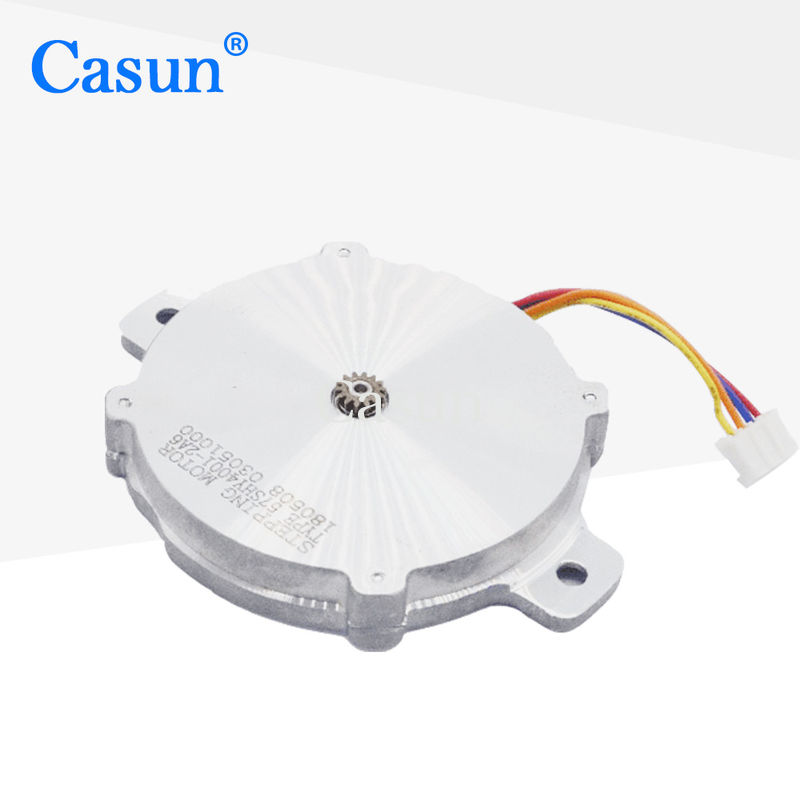

Flat Stepper Motor Nema 23 2.8V 0.8A Printing Machinery Feeder Use

Flat Stepper Motor Nema 23 2.8V 0.8A Printing Machinery Feeder Use

Brand Name:	Casun
Model Number:	57SHY4001-2A6
MOQ:	1PC
Price:	$9.68-13.46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8degree

Phase:

Rated Voltage:

2.8V

Rate Current:

0.8A

Holding Torque:

60mN.m

Detent Torque:

8mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Flat Stepper Motor Nema 23

2.8V Stepper Motor Nema 23

0.8A Flat Stepper Motor

Product Description

Flat Stepper Motor Nema 23 2.8V 0.8A Printing Machinery Feeder Use

Low Price Nema 23 Flat Stepper Motor 2.8V 0.8A Stepper Motor with Printing Machinery Feeder. The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	0.8A
Holding Torque	60 mN.m
Resistance	3.5 Ω
Inductance	1.8 mH
Rotor Inertia	2 g-cm²
Motor Weight	0.03 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model No	Step Angle	Rated Voltage	Rated Current	Phase Resistance	Phase Inductance	Holding Torque	Detent Torque	Rotor Inertia	Motor Length	Motor Weight
57SHY4001-2A	1.8°	2.8V	0.8A	3.5Ω	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4301-2A-0	1.8°	2.28V	1.2A	1.9Ω	1.2mH	125mN.m	8mN.m	18	57	0.09
57SHY4001-10K	1.8°	2.8V	0.8A	3.5Ω	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4001-10S	1.8°	2.8V	0.8A	3.5Ω	1.8mH	60mN.m	8mN.m	15	57	0.075
57SHY4604-21A	1.8°	14V	1A	14Ω	30mH	690mN.m	30mN.m	120	57	0.52

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

3. What can you buy from us?

Stepper Motor, BLDC Motor

4. Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal;
Language Spoken: English, Chinese, Japanese
