Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor

Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor

  • High Light

    Stage Lighting NEMA 14

    ,

    NEMA 14 Hybrid Stepper Motor

    ,

    1.2A 4.8V Casun Motor

  • Step Angel
    1.8°
  • Holding Torque
    220mN.m
  • Current
    1.2A
  • Rated Voltage
    4.8V
  • Motor Length
    40mm
  • Shaft
    Milling Flat Shaft 24mm Length
  • Place of Origin
    China
  • Brand Name
    Casun
  • Certification
    CE,ROHS,ISO
  • Model Number
    35SHD0810-24B
  • Minimum Order Quantity
    1PC
  • Price
    $4.14-$6.98
  • Packaging Details
    Carton:36x29x14cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor

Casun 35*35*40mm NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Stepper Motor for Stage Lighting

35x35×40mm Stepper Motor 1.8 Degree NEMA 14 Ordinary Model 0.22N.m for Stage Lighting

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

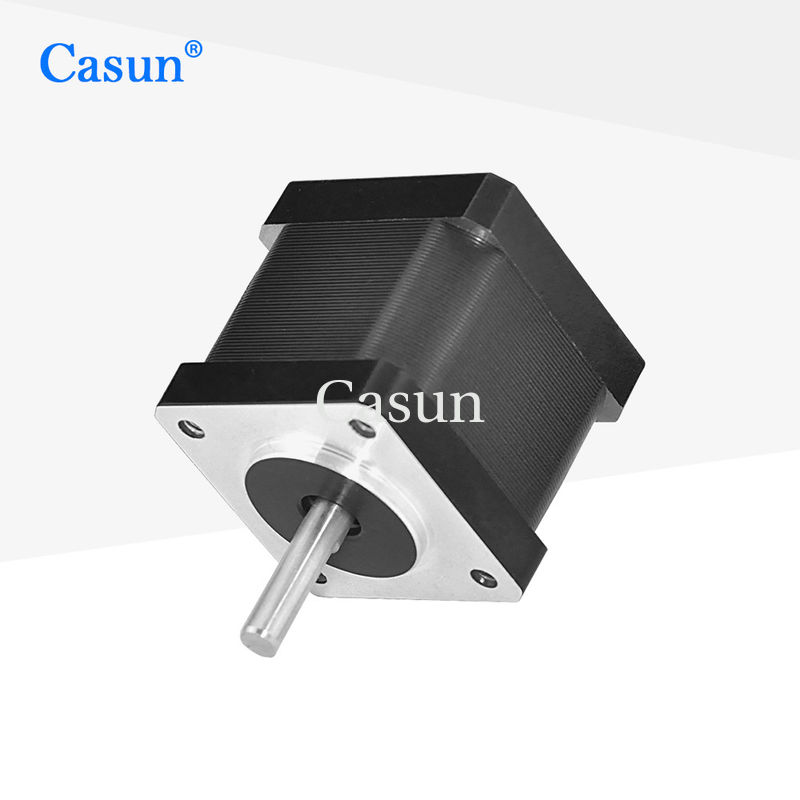

Appearance



Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor 0

Dimensions

Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor 1



Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

220 mN.m

Resistance

4.0 ohm

Inductance

7.0 mH

Rotor Inertia

18 g-cm²

Motor weight

0.21 kg

Number of leads

4

Connection

Bipolar









Torque Curves



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:
         Encoder          |                 Brake            |               Gearbox          |         Connector

Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor 2 Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor 3 Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor 4 Stage Lighting NEMA 14 Hybrid Stepper Motor 1.2A 4.8V Casun Motor 5

Please click the "Get  a quote" button below to tell us your requirements.
