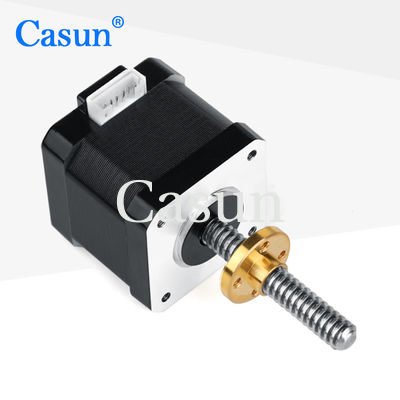

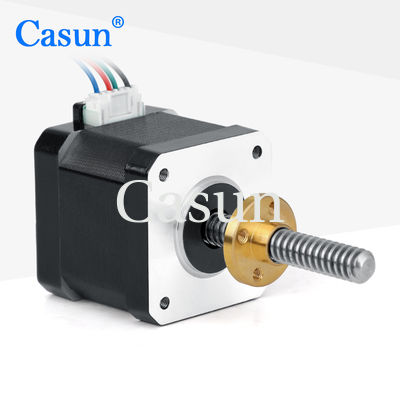

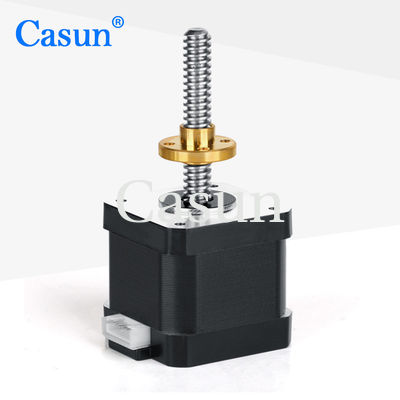

Casun Linear 34mm NEMA 17 Stepper Motor With Lead Screw 42mm 6.4V 1.28A

Casun Linear 34mm NEMA 17 Stepper Motor With Lead Screw 42mm 6.4V 1.28A

Brand Name:	Casun
Model Number:	42SHD0034-81NP
MOQ:	1PC
Price:	$9.68-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8degree

Phase:

Rated Voltage:

6.4V

Rate Current:

1.28A

Holding Torque:

300mN.m

Detent Torque:

12mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Casun Linear 34mm NEMA 17

Casun Stepper Motor With Lead Screw

6.4V 1.28A NEMA 17

Product Description

Casun Linear 34mm NEMA 17 Stepper Motor With Lead Screw 42mm 6.4V 1.28A

Product Overview

Casun NEMA 17 Linear 34mm Stepper Motor with Lead Screw 42mm 6.4V 1.28A. This Nema 17 Captive Stepper Motor features a 34mm lead screw and 42mm linear step motor, ideal for 3D printers and precision applications.

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in various sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Available in baseline versions or customized configurations.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.28A
Holding Torque	300 mN.m
Resistance	5.0 Ω
Inductance	6.2 mH
Rotor Inertia	38 g-cm²
Motor Weight	0.22 kg
Lead Screw	Tr8X1
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese

Ready to Order?

Please click the "Get a quote" button below to tell us your requirements.
