Home > products > Non Captive Stepper Motor > 1.2A 3V Nema 17 Non Captive Stepper Motor For CNC Machine ROHS

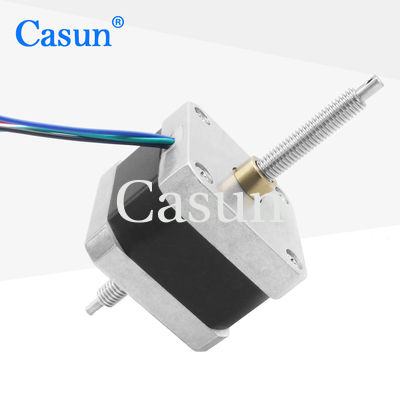

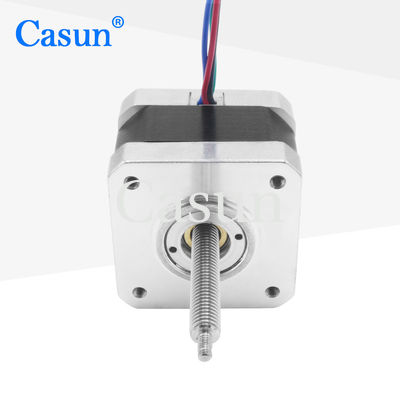

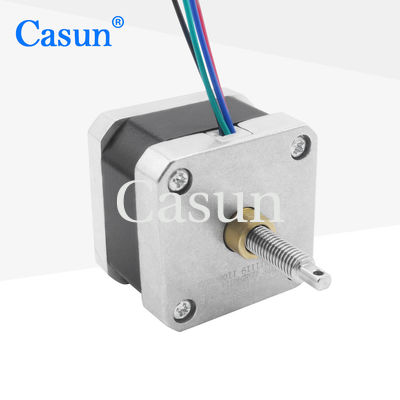

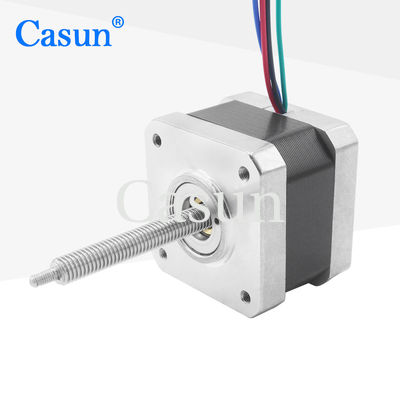

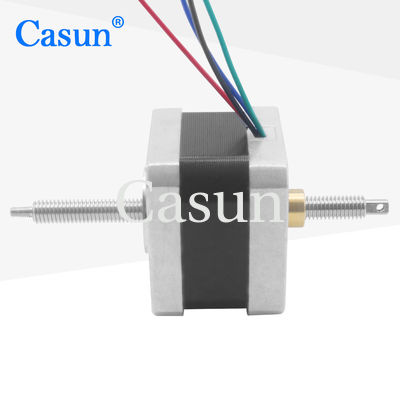

1.2A 3V Nema 17 Non Captive Stepper Motor For CNC Machine ROHS

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD40114-96TP1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $17.5-$18

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

1.2A 3V Nema 17 Non Captive

,

1.2A Non Captive Stepper Motor

,

ROHS Stepper Motor For CNC Machine

Color:
Black
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
3V
Current:
1.2A
Holding Torque:
260mN.m
Detent Torque:
12mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
3V
Current:
1.2A
Holding Torque:
260mN.m
Detent Torque:
12mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

42*42mm Nema17 stepper motor 1.2A Non-Captive 3V motor with ROHS for CNC machine

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

1.2A 3V Nema 17 Non Captive Stepper Motor For CNC Machine ROHS 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.2Amp

Holding Torque



260mN.m

Resistance



2.5ohm

Inductance



3.3mH

Rotor Inertia



38g-cm²

Motor weight



0.2kg

Lead Screw



Tr6.35X1

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese



Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.2A 3V Nema 17 Non Captive Stepper Motor For CNC Machine ROHS 1 1.2A 3V Nema 17 Non Captive Stepper Motor For CNC Machine ROHS 2 1.2A 3V Nema 17 Non Captive Stepper Motor For CNC Machine ROHS 3 1.2A 3V Nema 17 Non Captive Stepper Motor For CNC Machine ROHS 4





Please click the "Get  a quote" button below to tell us your requirements.
