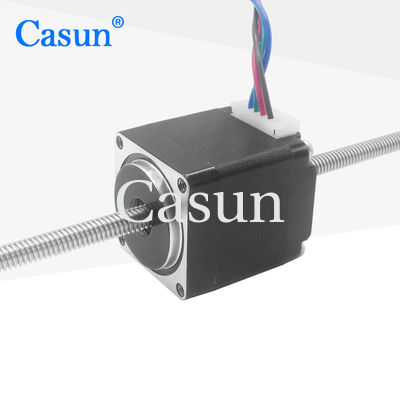

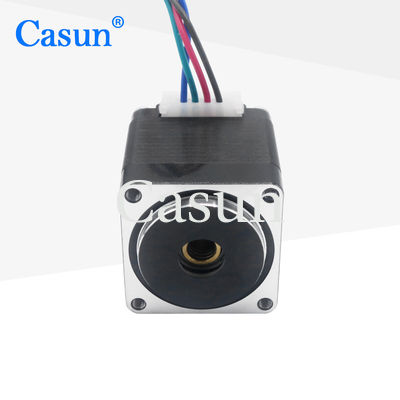

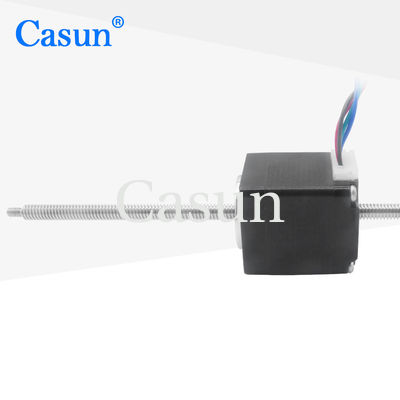

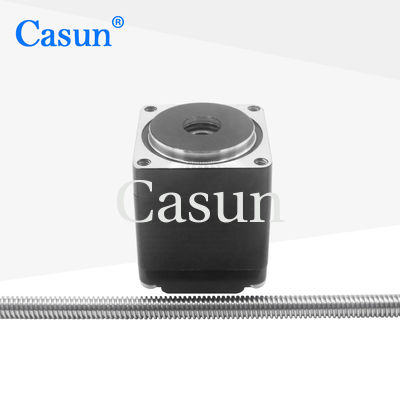

80mN.M Nema11 Non Captive Stepper Motor Through Screw Lead 8mm 0.8A 4.64V

80mN.M Nema11 Non Captive Stepper Motor Through Screw Lead 8mm 0.8A 4.64V

Brand Name:	Casun
Model Number:	28SHD4501-250TP
MOQ:	1PC
Price:	$9.94-$15
Payment Terms:	D/A,T/T,L/C,D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Color:

Black

Steper Angle:

1.8degree

Phase:

Rated Voltage:

4.64V

Rate Current:

0.8A

Holding Torque:

80mN.m

Detent Torque:

5mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Nema11 Non Captive Stepper Motor

80mN.m Non Captive Stepper Motor

0.8A 4.64V Stepper Motor

Product Description

Nema11 Stepper Motor with Through Screw

0.8A 4.64V Nema11 Stepper Motor with Through Screw and 8mm Lead, designed for SMT and CNC milling applications. The 42mm Hybrid Stepper Motor Series delivers powerful holding torque in compact sizes. Use with microstepping drivers to minimize vibration and achieve superior step resolution.

Key Features

Bipolar or unipolar versions available

Hybrid stepper construction

Available in single or double shaft versions

CE and RoHS certified

Custom configurations available upon request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28mm
Number of Phases	2 Phase
Rated Current	0.8A
Holding Torque	80mN.m
Resistance	5.8Ω
Inductance	4.1mH
Rotor Inertia	9g·cm²
Motor Weight	0.12kg
Lead Screw	Tr5×2
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100MΩ at 500 VDC
Dielectric Strength	500 VDC for 1 minute
Shaft Radial Play	0.02mm Max. (450g load)
Shaft Axial Play	0.08mm Max. (450g load)
Max. Radial Force	28N (20mm from flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Shaft Type	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

Custom Motor Solutions

If our standard motors don't meet your requirements, we can customize motors to your exact specifications. Customization options include special shafts, winding parameters, installation dimensions, specialized lead wires, connectors, and more.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2011. Our primary markets include Domestic Market (63%), Western Europe (12%), North America (9%), and Eastern Asia (8%). Our team consists of 51-100 professionals.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure quality standards.

What products do we offer?

We specialize in Stepper Motors and BLDC Motors.

Why choose us over other suppliers?

We have over 11 years of specialized experience in producing and selling stepper motors.

What services do we provide?

We accept FOB, CFR, CIF, EXW, and Express Delivery terms. Payment methods include T/T, L/C, D/P D/A, and PayPal. We communicate in English, Chinese, and Japanese.
