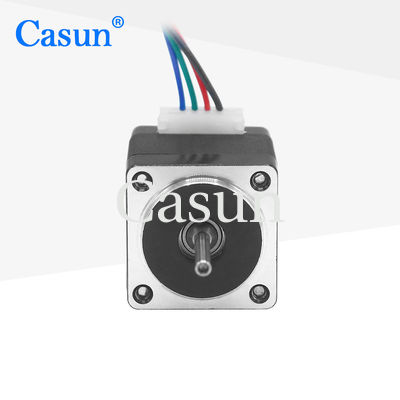

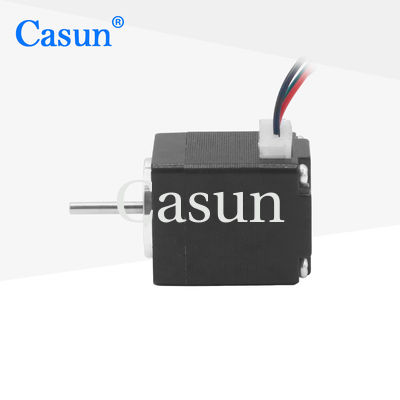

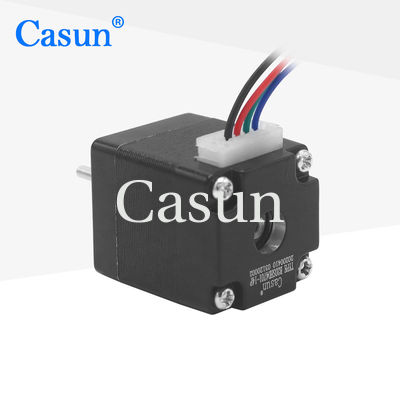

20x20mm 0.24A 5.04V 10mNM Nema 8 Hybrid Stepper Motor For DIY 3D Silver

name

20x20mm 0.24A 5.04V 10mNM Nema 8 Hybrid Stepper Motor For DIY 3D Silver

Brand Name: Casun
Model Number: B20SHD4701-14P
MOQ: 1PC
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
10mN.m
Current:
0.24A
Motor Length:
24.8mm
Shaft:
Round Shaft 14mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

20x20mm Hybrid Stepper Motor

,

0.24A 5.04V Nema 8 Stepper Motor

,

10mNM Nema 8 Stepper Motor

Product Description

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.24 A

Holding Torque



10 mN.m

Resistance



3.8 ohm

Inductance



21mH

Rotor Inertia



2g-cm²

Motor weight



0.08 kg

Number of leads



4

Connection



Bipolar





Appearance

20x20mm 0.24A 5.04V 10mNM Nema 8 Hybrid Stepper Motor For DIY 3D Silver 0

Dimensions

20x20mm 0.24A 5.04V 10mNM Nema 8 Hybrid Stepper Motor For DIY 3D Silver 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
