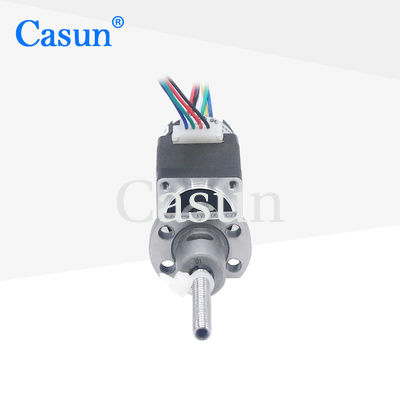

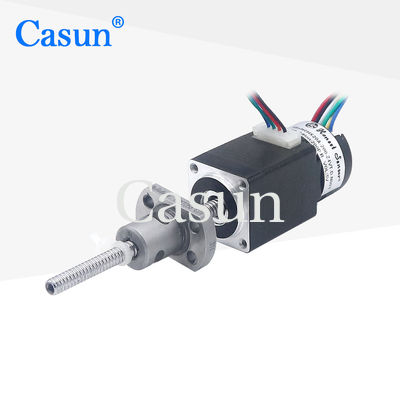

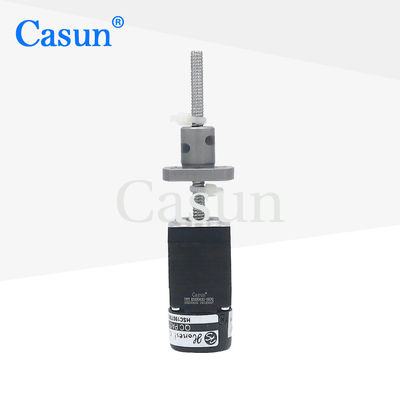

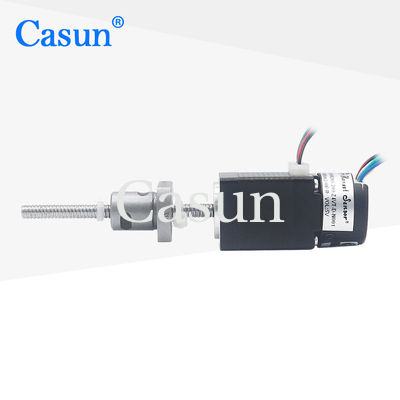

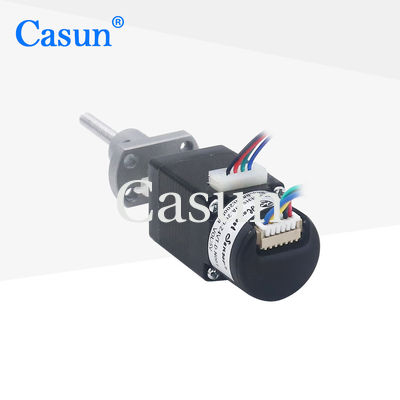

Casun 0.5A Ball Screw Stepper Motor Nema 8 For Drawing Instrument

Casun 0.5A Ball Screw Stepper Motor Nema 8 For Drawing Instrument

Brand Name:	Casun
Model Number:	B20SHD4351-56GPQ
MOQ:	1PC
Price:	$24.94-$35
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Color:

Black

Steper Angle:

1.8degree

Phase:

Rated Voltage:

2.55V

Current:

0.5A

Holding Torque:

14mN.m

Detent Torque:

2mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

0.5A Ball Screw Stepper Motor

Ball Screw Stepper Motor Nema 8

Casun 0.5A Stepper Motor

Product Description

Casun 0.5A Ball Screw Stepper Motor Nema 8 For Drawing Instrument

Nema 8 14mN.m 0.5A Stepper Motor with Ball Screw L200/250/300MM motor for Drawing instrument. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	20mm
Number of Phase	2 Phase
Rated Current	0.5A
Holding Torque	14mN.m
Resistance	5.5ohm
Inductance	1.5mH
Rotor Inertia	2g-cm²
Motor Weight	0.08kg
Lead Screw	SF0401
Connection	Bipolar

Operating Specifications

Parameter	Specification
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
