Brake Stepper Motor
Created with Pixso.

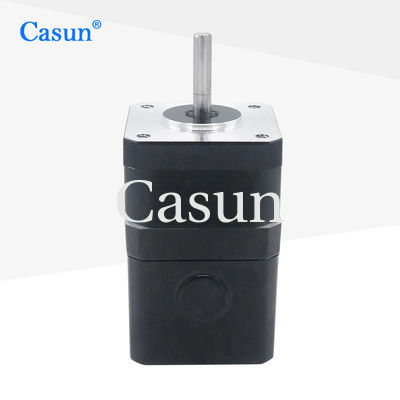

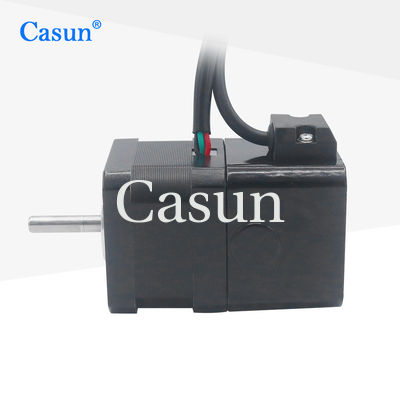

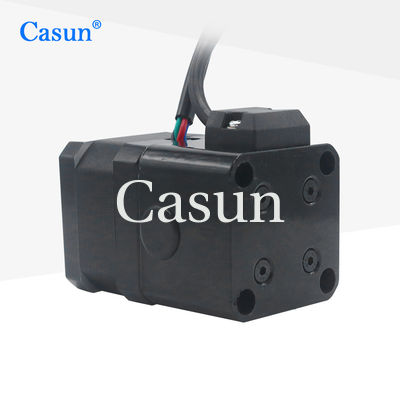

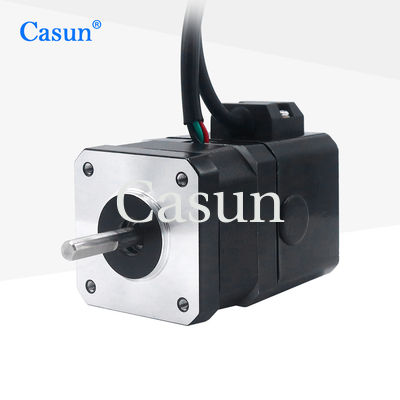

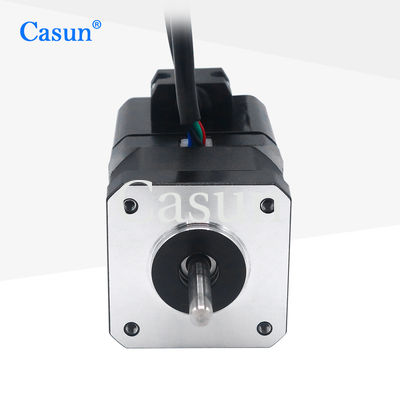

6V Stepper Motor 1.2A NEMA 17 Closed Loop Stepper Motor 1.8 Degree

name

6V Stepper Motor 1.2A NEMA 17 Closed Loop Stepper Motor 1.8 Degree

Brand Name: Casun
Model Number: 42SHD4034-24BH-HP42
MOQ: 1PC
Price: $22.94-$26.54
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
6V
Rate Current:
1.2A
Holding Torque:
300mN.m
Detent Torque:
12mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29x18cm
Highlight:

6V Stepper Motor 1.2A

,

6V NEMA 17 Closed Loop Stepper

,

1.2A NEMA 17 Closed Loop Stepper Motor

Product Description

6V Stepper Motor 1.2A with Encoder Closed Loop Stepper Motor Nema 17 Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

6V Stepper Motor 1.2A NEMA 17 Closed Loop Stepper Motor 1.8 Degree 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.5 A

Holding Torque



860 mN.m

Resistance



3.5 hm

Inductance



9.0 mH

Rotor Inertia



102 g-cm²

Motor weight



0.62 kg

Encoder Pulsh



2500

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -













Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

6V Stepper Motor 1.2A NEMA 17 Closed Loop Stepper Motor 1.8 Degree 1 6V Stepper Motor 1.2A NEMA 17 Closed Loop Stepper Motor 1.8 Degree 2 6V Stepper Motor 1.2A NEMA 17 Closed Loop Stepper Motor 1.8 Degree 3 6V Stepper Motor 1.2A NEMA 17 Closed Loop Stepper Motor 1.8 Degree 4





Please click the "Get  a quote" button below to tell us your requirements.
