60x60x58mm NEMA 24 Closed Loop Stepper Motor 1.5A Black Casun Stepper Motor

60x60x58mm NEMA 24 Closed Loop Stepper Motor 1.5A Black Casun Stepper Motor

60x60 NEMA 24

58mm NEMA 24 Closed Loop Stepper

Black Casun Stepper Motor

Place of Origin:

China

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

60SHF0504-24Q

Contact Us

Request A Quote
Product Details
Step Angel:
1.2°
Holding Torque:
800mN.m
Current:
1.5A
Motor Length:
58mm
Shaft:
Round Shaft 24mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

60*60*58mm Motor paso a paso NEMA 24 Stepper Motor with Magnetic Encoder 1.5A Black color

The 60mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • Professional research and development manufacturing

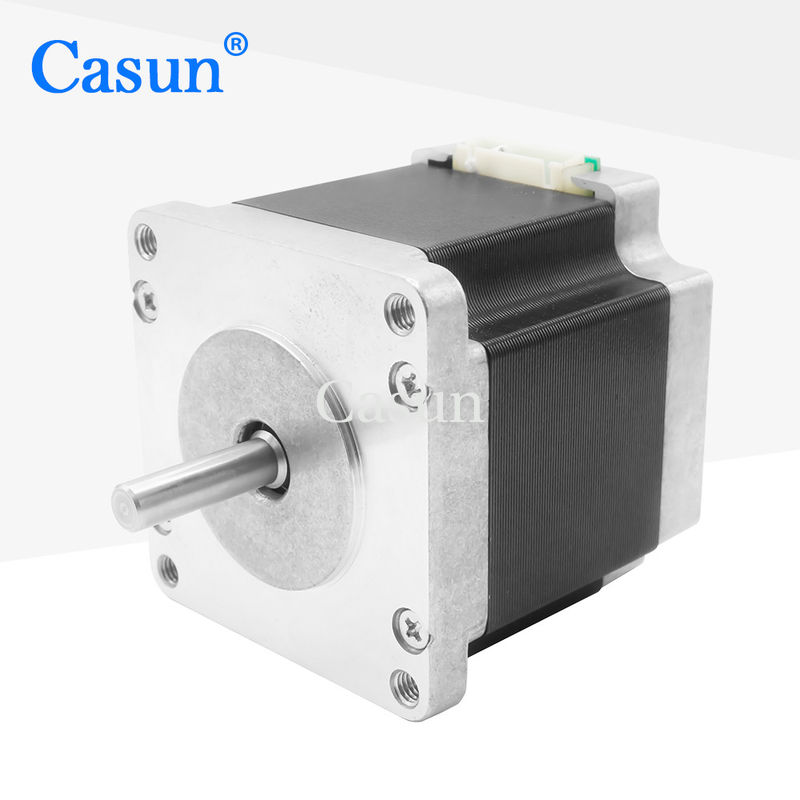

Appearance

60x60x58mm NEMA 24 Closed Loop Stepper Motor 1.5A Black Casun Stepper Motor 0

Dimensions

60x60x58mm NEMA 24 Closed Loop Stepper Motor 1.5A Black Casun Stepper Motor 1

Motor Specifications



Step Angel

1.2 °

Fram Size

60 mm

Number of Phase

3 Phase

Rated Current

1.5 A

Holding Torque

800 mN.m

Resistance

3.6 ohm

Inductance

7.0 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves









Submodels

Model Holding
Torque
Rated
Current
Resistance
per phase
Inductance
per phase
Detent
torque
Rotor
inertia
Lead
wire
Motor
length
mN.m A Ω mH mN.m g.cm² No. mm
60SHD4201 650 0.6 15 20 50 280 4 45
60SHD4401 1500 2.8 1 3.3 70 450 4 56
60SHD4601 3200 4.2 0.75 3.7 120 580 4 86
60SHD6602 2500 3 1.55 3.7 120 580 4

























Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese



Options:

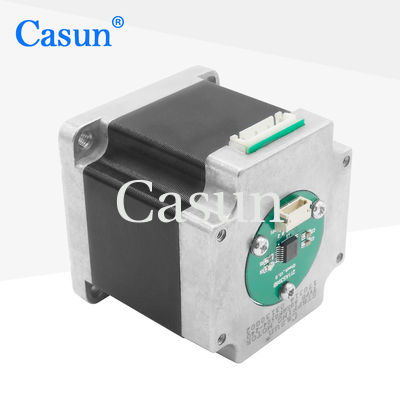

Encoder

Brake

Gearbox

Shaft

60x60x58mm NEMA 24 Closed Loop Stepper Motor 1.5A Black Casun Stepper Motor 2 60x60x58mm NEMA 24 Closed Loop Stepper Motor 1.5A Black Casun Stepper Motor 3 60x60x58mm NEMA 24 Closed Loop Stepper Motor 1.5A Black Casun Stepper Motor 4 60x60x58mm NEMA 24 Closed Loop Stepper Motor 1.5A Black Casun Stepper Motor 5
