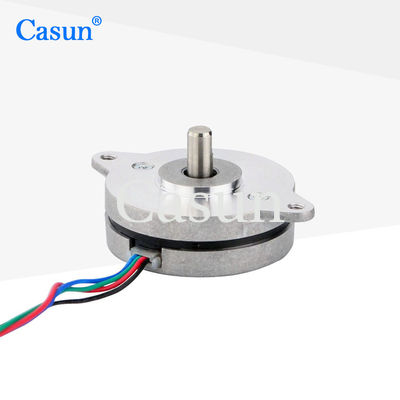

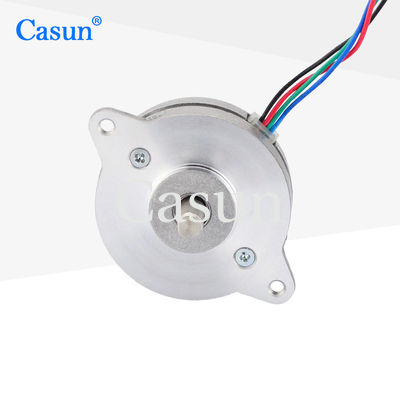

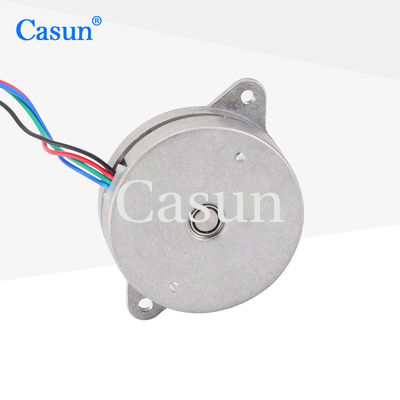

Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine
  • Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine
  • Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine
  • Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine
  • Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine

Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine

Place of Origin China
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 36SHD4001-11B
Product Details
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.3A
Rated Voltage:
6V
Motor Length:
12.5mm
Shaft:
D Shaft 10mm Length
High Light:

0.3A Nema 14 Stepper Motor

,

Casun 0.3A Nema 14

,

Video Conference Machine Nema 14 Stepper

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$7.6-$10
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

Casun Nema 14 0.3A Stepper Motor 6V DC Stepper Motor 36*12.5mm for Video conference machine

High Torque Casun 0.3A NEMA 14 Stepper Motor 12.5mm 6V DC Stepper Motor

36*12.5mm 0.3A 2 Phase Bipolar Hybrid 6V DC NEMA 14 Thin Stepper Motor

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request



Appearance

Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine 0

Dimensions

Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine 1







Motor Specifications



Step Angel



1.8 °

Fram Size



12.5 mm

Number of Phase



2 Phase

Rated Current



0.3A

Holding Torque



22 mN.m

Resistance



20 ohm

Inductance



6.8 mH

Rotor Inertia



4 g-cm²

Motor weight



0.06 kg

Number of leads



4

Connection



Bipolar









Torque Curves

















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.



FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:

Encoder

Brake

Gearbox

Shaft

Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine 2 Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine 3 Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine 4 Casun 0.3A Nema 14 Stepper Motor 6V DC For Video Conference Machine 5
