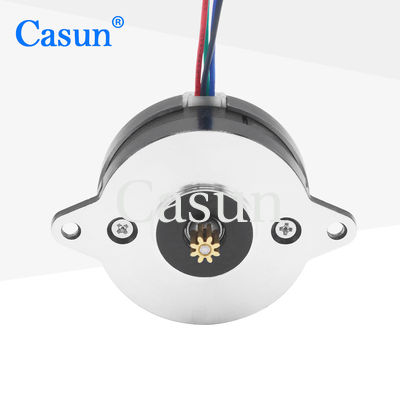

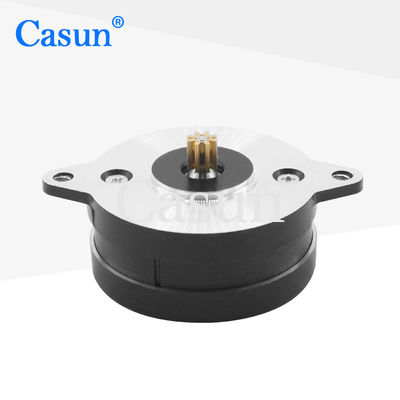

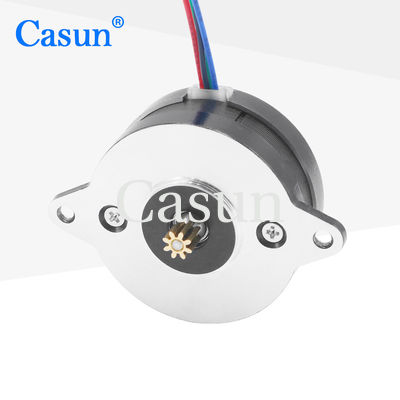

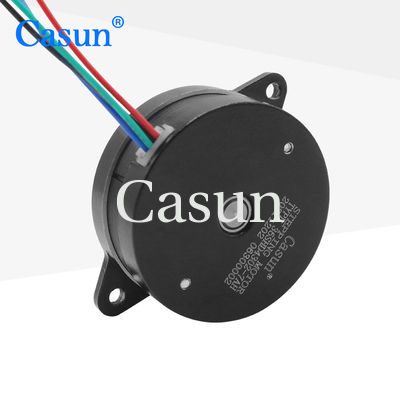

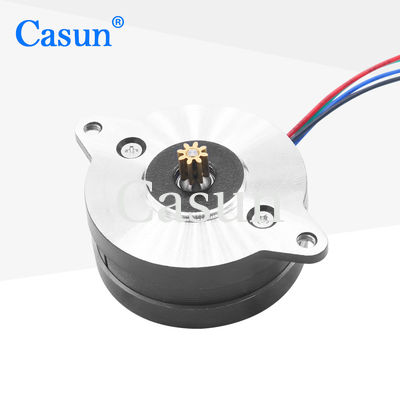

36*15.5mm Nema 14 Stepper 0.3A Black 6.6V DC Step Motor

36*15.5mm Nema 14 Stepper 0.3A Black 6.6V DC Step Motor

Brand Name:	Casun
Model Number:	36SHD4302-7AH
MOQ:	1PC
Price:	$7.6-$10
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

100mN.m

Current:

0.3A

Rated Voltage:

6.6V

Motor Length:

15.5mm

Shaft:

D Shaft 7mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

36*15.5mm Nema 14 Stepper

Nema 14 Stepper 0.3A

Black 6.6V DC Step Motor

Product Description

Video Conference Nema 14 Stepper 0.3A black color 6.6V DC Stepping Motor 36*15.5mm

Video conference machine Casun Nema 14 0.3A Stepper Motor 6.6V DC Stepper Motor 36*15.5mm

36*15.5mm 0.3A 2 Phase Bipolar Hybrid 6.6V DC NEMA 14 Thin Stepper Motor

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	15.5mm
Number of Phase	2 Phase
Rated Current	0.3A
Holding Torque	90 mN.m
Resistance	23 ohm
Inductance	10 mH
Rotor Inertia	4 g-cm²
Motor weight	0.06 kg
Number of leads	4
Connection	Bipolar

Torque Curves

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Stepper Motor,BLDC Motor

4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
