Home > products > Hybrid Stepper Motor > 57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot

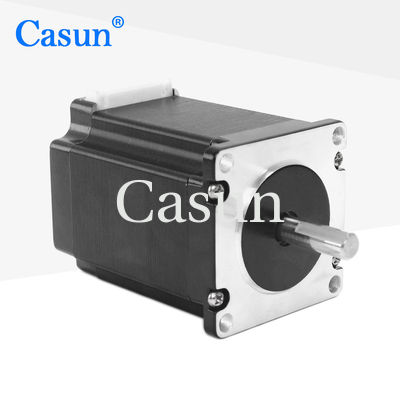

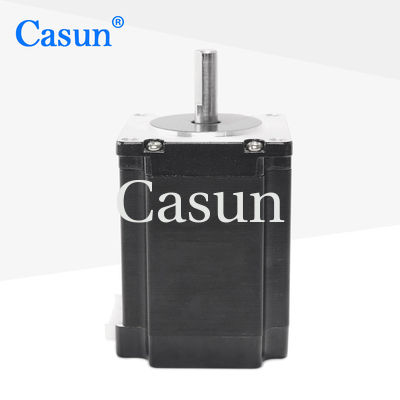

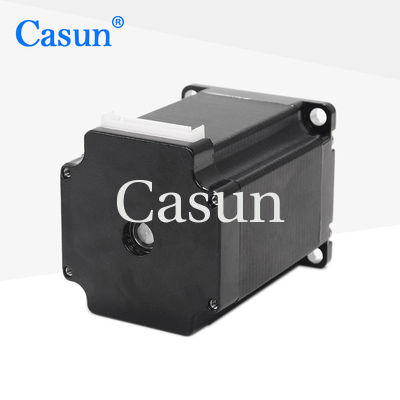

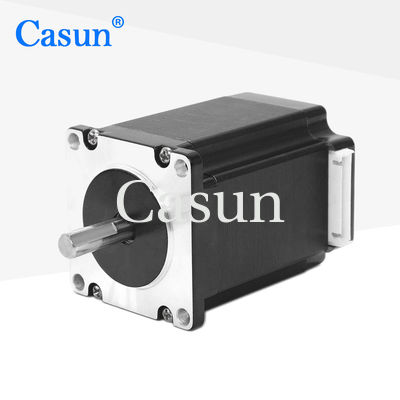

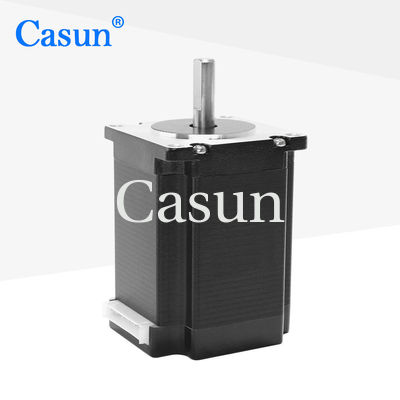

57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot
57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot
57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot
57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot
57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot
57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot

57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD0807-24BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

NEMA 23 Hybrid Stepper Motor

,

57SHD0807 Hybrid Stepper Motor

,

Hybrid Stepper Motor 3.0A

Step Angel:
1.8°
Holding Torque:
2200mN.m
Current:
3.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
2200mN.m
Current:
3.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

【57SHD0807】57x57x76mm 2 Phase High Torque 2.2N.m 3.0A NEMA 23 Hybrid Stepper Motor for CMM Robot

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Accept contract manufacturing

  • Established in China for 12 years and has served more than 800 customers.

  • High torque and high precision

Appearance

57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot 0

Dimensions

57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.0 A

Holding Torque

2200 mN.m

Resistance

2.0 ohm

Inductance

8.0 mH

Rotor Inertia

460 g-cm²

Motor weight

1 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot 2 57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot 3 57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot 4 57SHD0807 NEMA 23 Hybrid Stepper Motor 2 Phase High Torque 2.2N.M 3.0A For CMM Robot 5



Please click the "Get a quote" button below to tell us your requirements.
