DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home

【57SHD4935-KH】DC Linear NEMA 23 Non Captive Stepper Motor 100mm body 4.5A for Automation Home

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Our engineers will be in touch within 48 hours to provide the best solution

  • Professional drivetrain solution specialist

  • High torque and high precision

Appearance

DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home 0

Dimensions

DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

4.5 A

Holding Torque

3000 mN.m

Resistance

1.3 ohm

Inductance

6.0 mH

Rotor Inertia

650 g-cm²

Motor weight

1 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

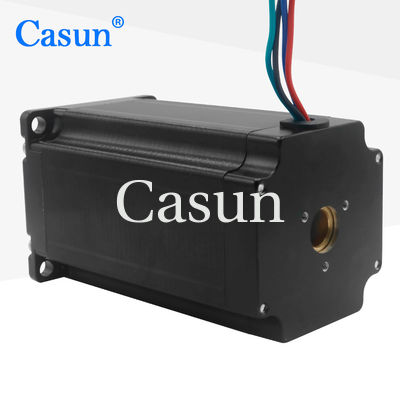

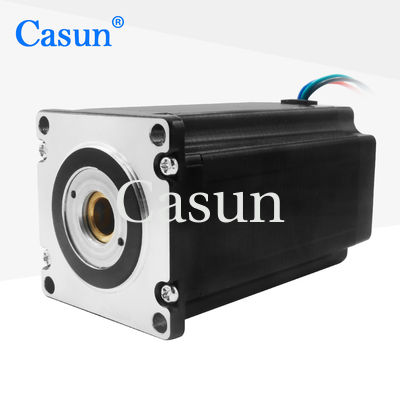

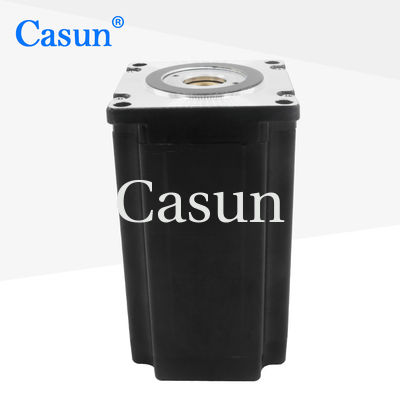

DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home 2 DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home 3 DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home 4 DC Linear NEMA 23 Non Captive Stepper Motor 100mm 4.5A 57SHD4935-KH For Automation Home 5



Please click the "Get a quote" button below to tell us your requirements.
