86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft
  • 86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft
  • 86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft
  • 86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft
  • 86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft
  • 86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft

86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft

Place of Origin China
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 86SHD4509-34QH
Product Details
Color:
Black
Current / Phase:
6Amp
Holding Torque:
12N.m
Rated Voltage:
4.14V
Steper Angle:
1.8degree
Phase:
2
High Light:

4.14V Closed Loop Motor

,

34mm Shaft Closed Loop Motor

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$49-$59
Packaging Details
Carton:38x29x18cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

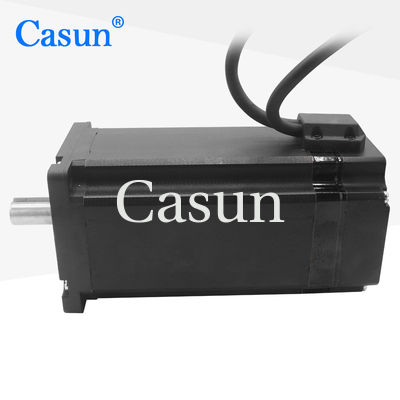

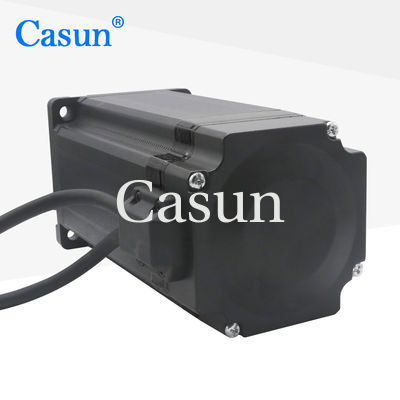

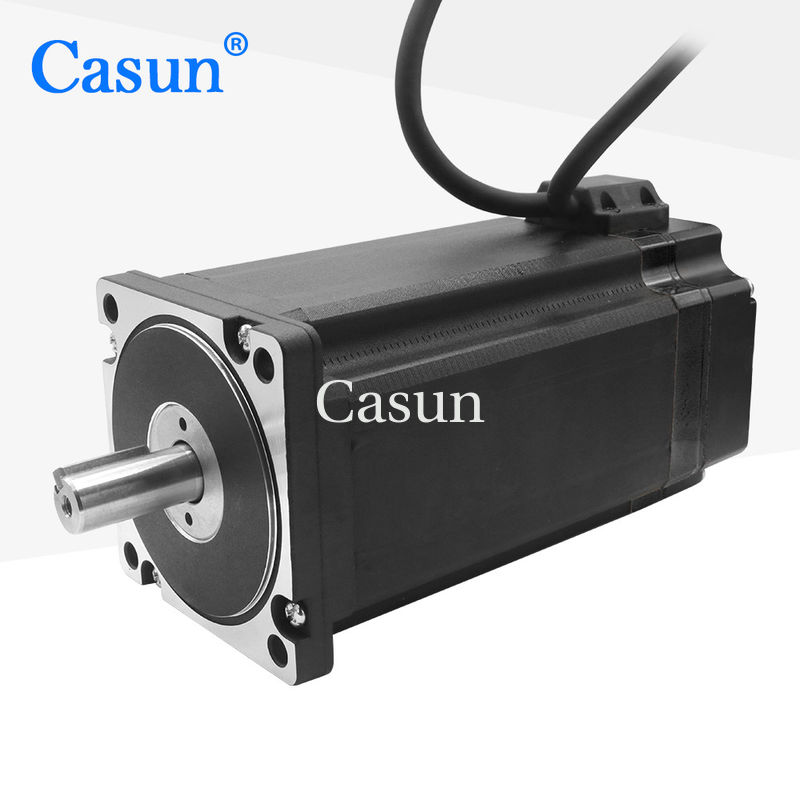

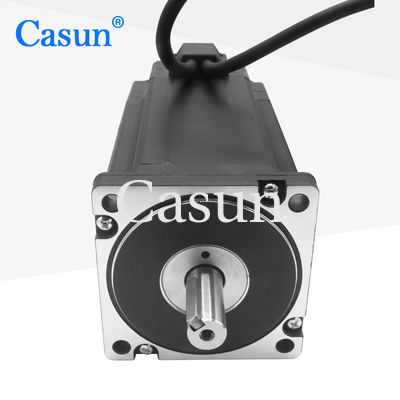

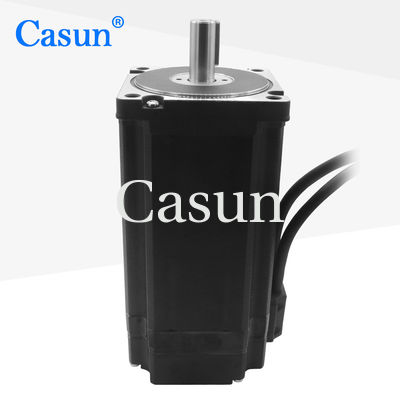

86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft Black color

Nema 34 Closed Loop Stepper Motor 12Nm Encoder 1000CPR 6A 2 Phase 86 CNC Stepping Motor 34mm Shaft

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft 0







Motor Specifications



Step Angel



1.8 °

Fram Size



86 mm

Number of Phase



2 Phase

Rated Current



6 Amp

Holding Torque



12N.m

Resistance



0.69 hm

Inductance



7.2mH

Rotor Inertia



3600g-cm²

Motor weight



5.5 kg

Encoder Pulsh



1000

Connection



Bipolar



Operating Specifications



Motor



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min



Encoder







Voltage: 5 v

Output: A + A - B + B - Z + Z -













Torque Curves









Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A

Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft 1 86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft 2 86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft 3 86*86mm 6A Nema 34 4.14V Closed Loop Motor 86 CNC Stepping Motor 34mm Shaft 4





Please click the "Get  a quote" button below to tell us your requirements.
