Home > products > Ball Screw Stepper Motor > 3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm

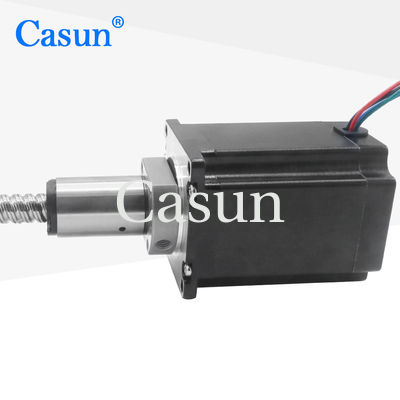

3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm
3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm
3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm
3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm
3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm
3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm

3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4816-201GHH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $100-$102

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

2.85V Ball Screw Stepper Motor

,

Nema 23 Ball Screw Stepper Motor

,

Hybrid Ball Screw Stepper Motor

Color:
Black
Holding Torque:
2000mN.m
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
2.85V
Rate Current:
3A
Detent Torque:
70mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Holding Torque:
2000mN.m
Steper Angle:
1.8degree
Phase:
2
Rated Voltage:
2.85V
Rate Current:
3A
Detent Torque:
70mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Casun 3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm

Nema 23 External Ball Screw Linear Stepper Motor 2000mNm 4.0A 76mm 24mm Diameter Lead Length 201mm For 3D

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



3A

Holding Torque



2000 mN.m

Resistance



0.95ohm

Inductance



3.6mH

Rotor Inertia



460g-cm²

Motor weight



1.4kg

Lead Screw



SPS01210-2.8

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm 1 3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm 2 3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm 3 3A Nema 23 2.85V Ball Screw Stepper Motor Hybrid Linear Actuator 57*57*76mm 4





Please click the "Get  a quote" button below to tell us your requirements.












Tags:

Vision System Ball Screw Stepper Motor,

NEMA 8 Ball Screw Stepper Motor,

25mm Ball Screw Stepper Motor
