86X86mm NEMA 34 Closed Loop Motor HBS86H 8.5Nm 37mm Shaft 6A 3.24V DC

86X86mm NEMA 34 Closed Loop Motor HBS86H 8.5Nm 37mm Shaft 6A 3.24V DC

Brand Name:	Casun
Model Number:	86SHD4317-37QH+HBS86H
MOQ:	1PC
Price:	$84-$90
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current / Phase:

6Amp

Holding Torque:

8.5N.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

NEMA 34 Closed Loop Motor

37mm Shaft Closed Loop Motor

3.24V DC Close Loop Stepper Motor

Product Description

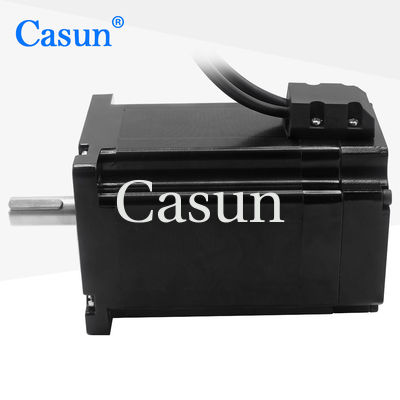

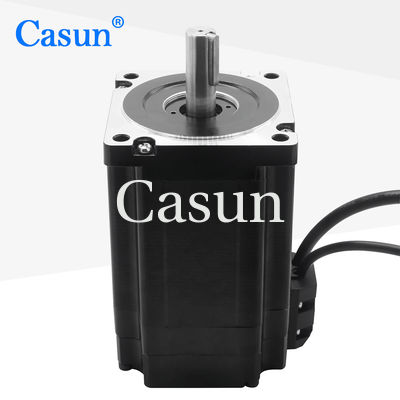

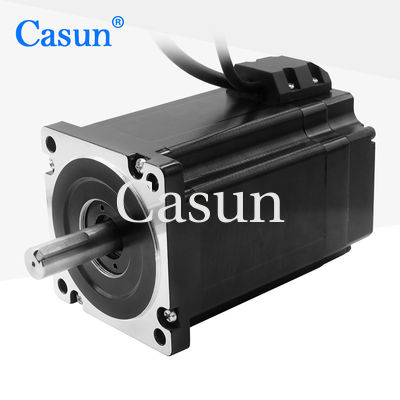

Casun 86X86mm NEMA34 Closed Loop Motor +HBS86H 8.5Nm 37mm Shaft DC Stepper Motor 6A 3.24V

Nema23 57MMX57MM Hybrid Closed Loop Stepper Motor 2.5A 3V DC 1.2Nm 25mm Shaft for CNC SMT

The 42mm Hybrid Stepper Motor Series provides high holding torque in a range of sizes.

To eliminate vibration and achieve higher step resolution, use with a microstepping driver.

Select a base version or request a customised configuration.

Features:

There are bipolar and unipolar versions available.

Stepper hybrid construction

CE and RoHS certifications are available.

Customizations on request

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	86mm
Number of Phase	2 Phase
Rated Current	6 Amp
Holding Torque	8.5N.m
Resistance	0.54Ohm
Inductance	5.0mH
Rotor Inertia	2700g-cm²
Motor weight	3.8 kg
Encoder Pulsh	1000
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B -

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Download

If our basic motor does not satisfy your requirements, we may customise the motor to meet your specifications.

unique shafts, winding parameters, installation measurements, lead wires with unique needs, connections, and so forth are examples of customised content.

Options:
Encoder | Brake | Gearbox | Shaft

86X86mm NEMA 34 Closed Loop Motor HBS86H 8.5Nm 37mm Shaft 6A 3.24V DC 1

Please click the "Get a quote" button below to tell us your requirements.

Tags:

NEMA 34 Closed Loop Motor

37mm Shaft Closed Loop Motor

3.24V DC Close Loop Stepper Motor

NEMA 17 Closed Loop Stepper Motor With Encoder 42x42x48mm 1.2A For Robot Accessories

Get Best Price

Close Loop Stepper Motor Hybrid 2N.M NEMA 23 With Encoder For Printing Machines

Get Best Price

NEMA 34 Closed Loop Hybrid CNC Stepping Motor 12N.M 150mm Length With Encoder

Get Best Price

High Precision Closed Loop Stepping Motor 58mm Body 1.5A For Machine Tools NEMA 24

Get Best Price

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment

Get Best Price

0.9 Degree Nema 23 Stepper Motor 1.2N.M 575754mm For Industrial Automation

Get Best Price

5.0A NEMA 23 Closed Loop Motor With Encoder For Printing Machines 5.0A For Lathes

Get Best Price

Casun 1.68Amp 0.5kg NEMA 17 Closed Loop Stepper Motor For CNC

Get Best Price
