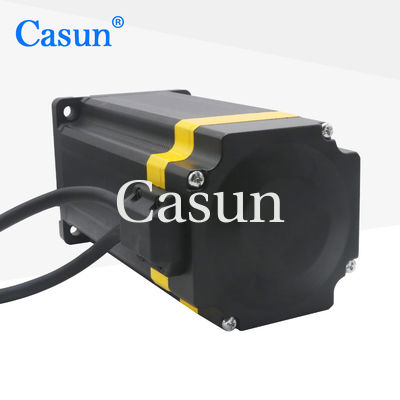

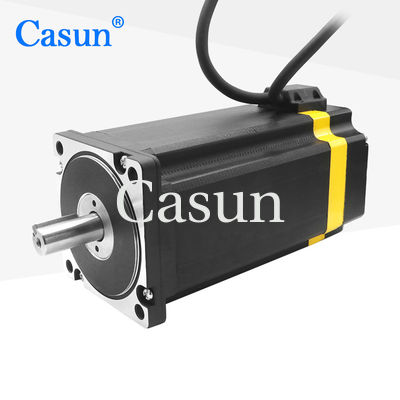

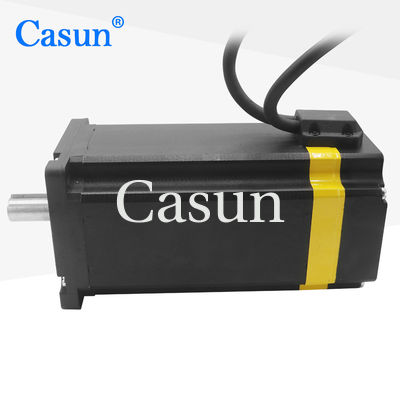

NEMA34 Closed Loop Stepper Motor 86X86mm 8.5Nm 3.24V DC 6A For CNC

NEMA34 Closed Loop Stepper Motor 86X86mm 8.5Nm 3.24V DC 6A For CNC

Brand Name:	Casun
Model Number:	86EBP181ALC
MOQ:	1PC
Price:	$47-$55
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current / Phase:

6Amp

Holding Torque:

8.5N.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29x18cm

Highlight:

NEMA34 Closed Loop Stepper Motor

Closed Loop Stepper Motor 8.5Nm

Product Description

NEMA34 Closed Loop Stepper Motor 86X86mm 8.5Nm 3.24V DC 6A For CNC

Casun NEMA34 Closed Loop Motor 86X86mm 8.5Nm 3.24V DC 6A Stepper Motor for CNC. The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	86mm
Number of Phase	2 Phase
Rated Current	6 Amp
Holding Torque	8.5N.m
Resistance	0.54Ohm
Inductance	5.0mH
Rotor Inertia	2700g-cm²
Motor Weight	3.8 kg
Encoder Pulse	1000
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Encoder

Voltage	5V
Output	A + A - B + B -

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.
