products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Non Captive Stepper Motor
Created with Pixso.

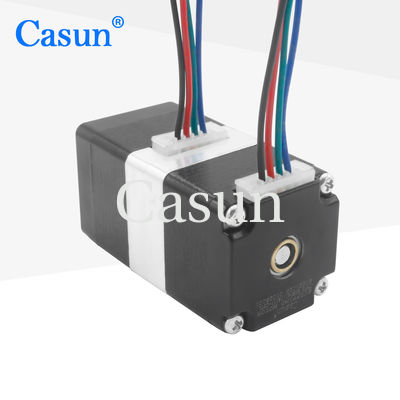

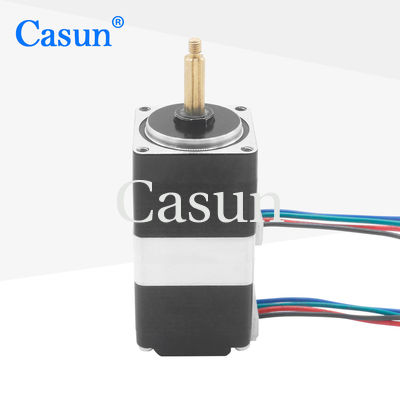

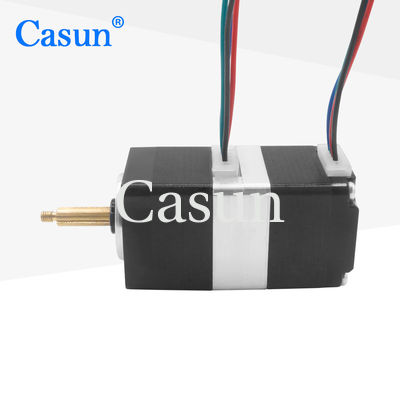

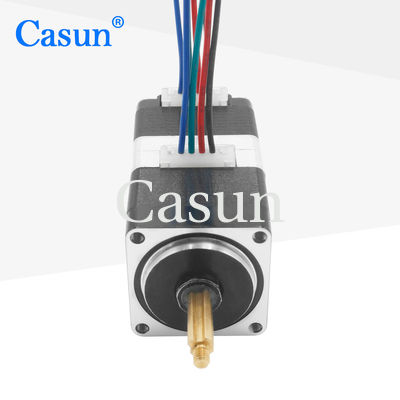

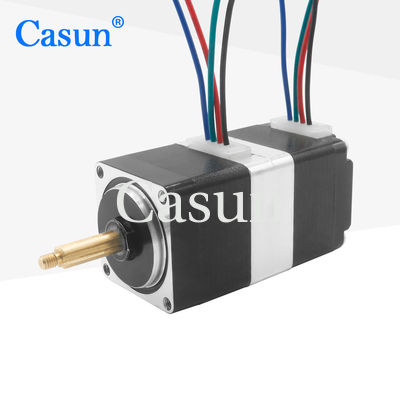

28mm Hybrid Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.M

name

28mm Hybrid Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.M

Brand Name: Casun
Model Number: S28D41114111-C27L
MOQ: 1PC
Price: $26-$31
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
55mN.m
Current:
0.67A
Motor Length:
55
Shaft:
22mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

28mm Hybrid Non Captive Stepper Motor

,

Non Captive Stepper Motor NEMA 11

Product Description

Casun Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.m CE ROHS

NEMA 11 Non Captive Stepping Motor Multi Motion 28*28*55mm 55mN.m with CE ROHS



The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request



Appearance



28mm Hybrid Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.M 0

Dimensions

28mm Hybrid Non Captive Stepper Motor NEMA 11 Multi Motion 6.16V 55mN.M 1



Motor Specifications

Step Angel

1.8 °

Fram Size

28 mm

Number of Phase

2 Phase

Rated Current

0.67 A

Holding Torque

55 mN.m

Resistance

9.2 ohm

Inductance

5.7 mH

Rotor Inertia

-

Motor weight

-

Number of leads

4

Connection

Bipolar









Torque Curves

















Submodels

Body Length Diameter of Screw Pitch Length of Screw
27 mm

30 mm

38 mm

42 mm

47 mm		 3.5 0.6096 20-1000 mm
1.2192
2.44
4
4 2
4.76 5.08
5 2
4
8
5.08
5.56 4.8768

Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
