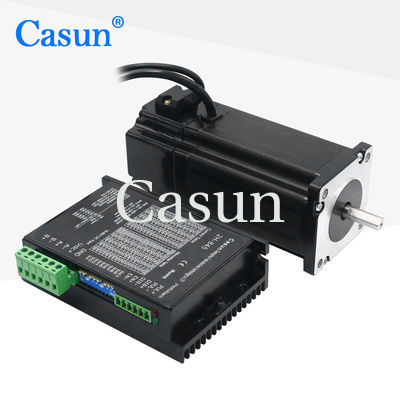

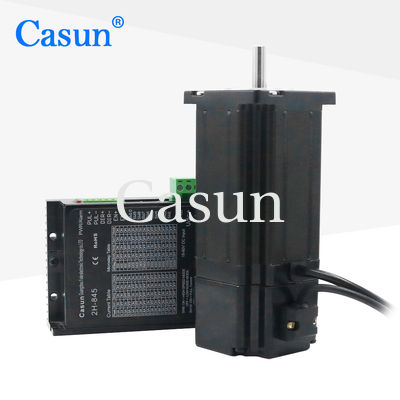

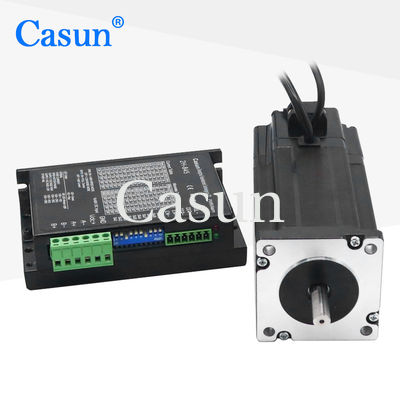

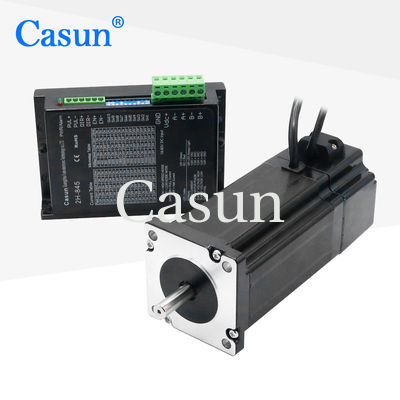

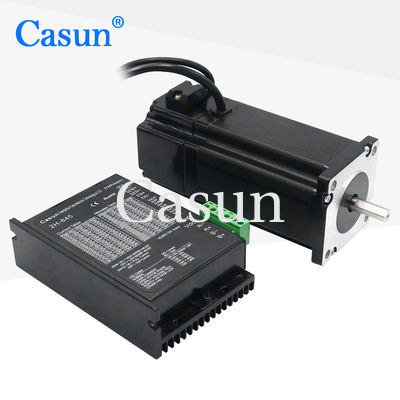

Nema 24 Brake Stepper Motor 4.1N.M 1.5kg 24mm Length Shaft

Nema 24 Brake Stepper Motor 4.1N.M 1.5kg 24mm Length Shaft

Brand Name:	Casun
Model Number:	60shd4701-24BH-HP60
MOQ:	1PC
Price:	$26.46-$50.46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

4.1N.m

Current:

Motor Length:

100mm

Shaft:

24mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Nema 24 Brake Stepper Motor

24mm Length Shaft Brake Stepper Motor

Product Description

Nema 24 Brake Stepper Motor 4.1N.M 1.5kg 24mm Length Shaft

Casun Stepper Motor Nema24 Brake Stepper Motor 4.1N.m 1.5kg Step Motor with Brake. NEMA 24 Stepper Motor with brake 60×60×100mm 3.5A. The nema24 Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

High torque and high precision
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Established in China for 12 years and has served more than 800 customers
Professional research and development manufacturing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	60mm
Number of Phase	2 Phase
Rated Current	5.2A
Holding Torque	4.1N.m
Resistance	1.2Ω
Inductance	3.9mH
Rotor Inertia	1000 g·cm²
Motor Weight	1.5 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100MΩ at 500 VDC
Dielectric Strength	500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque (mN.m)	Rated Current (A)	Resistance per phase (Ω)	Inductance per phase (mH)	Detent torque (mN.m)	Rotor inertia (g·cm²)	Lead wire	Motor length (mm)
60SHD4201	650	0.6	15	20	50	280	4	45
60SHD4401	1500	2.8	1	3.3	70	450	4	56
60SHD4601	3200	4.2	0.75	3.7	120	580	4	86
60SHD6602	2500	3	1.55	3.7	120	580	4

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
